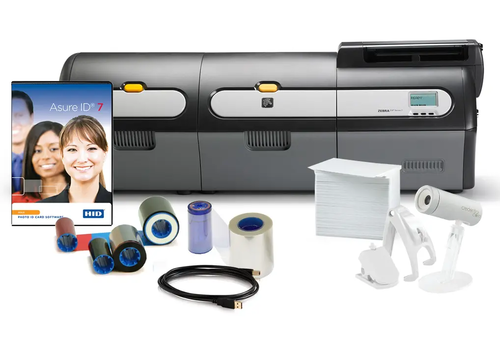

Zebra ZXP Series 7 Dual Sided ID Card System with Dual-Sided Lamination

Standard features

• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows-certified drivers
• 200-card capacity feeder (30 mil)
• 15-card reject hopper (30 mil)
• 100-card output hopper (30 mil)
• Single-card feed capability
• ix Series intelligent media technology
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year unlimited warranty on printer and printhead

Printing specifications

• Color dye sublimation or monochrome thermal transfer printing
• Single and dual-sided printing
• Near photographic print quality
• Simultaneous printing, encoding, and laminating capability
• One-pass single- and dual-sided wasteless lamination
• Edge-to-edge printing on standard CR-80 media
• 1,375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
• 300 cards/hour full-color YMCKO single-sided printing
• 225 cards/hour full-color YMCKOK dual-sided printing
• 270 cards/hour full-color YMCK single-sided printing with lamination
• 200 cards/hour full-color YMCKK dual-sided printing with lamination

NOTE: Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.

OPERATING CHARACTERISTICS

Environmental

• Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC
• Operating Humidity: 20% to 80% non-condensing
• Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C
• Storage Humidity: 10% to 90% non-condensing
• Media Storage:
• Temperature: 41ºF to 86ºF/5ºC to 30ºC
• Humidity: 30% to 50% non-condensing
• Do not store in direct sunlight

Electrical

• Auto-switching single-phase AC power
• 90V – 264V AC and 47 – 63Hz (50 – 60Hz nominal)
• FCC Class A

PHYSICAL CHARACTERISTICS

• Length: 10.9"/277 mm
• Width Printer only: 27.5"/699 mm
• Printer with laminator: 38"/964 mm
• Height 12"/306 mm
• Weight Printer only: 26.9 lbs/12.2 kg
• Printer with laminator: 39.5 lbs/17.9 kg

COMMUNICATION AND INTERFACE CAPABILITIES

• USB 2.0
• USB supports plug-and-play printer identification
• 10/100 Ethernet
• 802.11b/g wireless option

SOFTWARE TOOLS

• ZMotif SDK support and sample code
• Microsoft Windows Certified printer drivers with Toolbox utility features: Windows XP (32 bit), Vista (32 and 64 bit), Server 2003 (32 bit), Windows 7 (32 and 64 bit), Server 2008 (32 and 64 bit), Windows 8 and Win 8 Pro (32 and 64 bit), Server 2012 (64 bit)
• CardStudio card design and issuance software
• Zebra Virtual PrintWare software support
