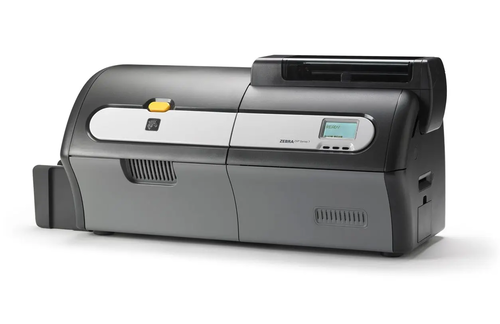

Zebra ZXP Series 7 Single Sided ID Card Printer

The ZXP Series 7 printer has an innovative design. It automatically adjusts to the thickness of the card, and ribbon loading is easy. With color coded guides and a clear LCD control panel, it’s simple for anyone to use.

Designed to work right out of the box, the ZXP Series 7 printer offers high speed and low maintenance. For example, up to 3 jobs can be processing at the same time (encoding, printing, and laminating simultaneously) for faster throughput. And the ZXP Series 7 printer uses high-capacity media, and ribbon and laminate rolls are synchronized.

The Zebra ZXP Series 7 single-sided ID card printer has been designed for high-volume applications such as:

• Service bureaus
• Identification cards
• Access control badges
• Retail and Hospitality cards
• Education badges

With the Zebra ZXP Series 7 printer, you will get near-photographic print quality for all your cards. The Zebra ZXP Series 7 comes with a two-year warranty.

Options include:

• Single- or dual-sided printing
• Numerous encoding and connectivity options, including UHF encoding and 802.11b/g wireless connectivity
• Wasteless single- or dual-sided lamination
• Integrated barcode reader
• Zebra® Duo-Print™ dual-sided printing upgrade kit
• A variety of ribbon options

The Zebra ZXP Series 7 single-sided ID card printer is ideal to print high-quality cards in high volume. Time after time, it prints sharp, vivid cards with precise color control.

Standard features

• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows-certified drivers
• 200-card capacity feeder (30 mil)
• 15-card reject hopper (30 mil)
• 100-card output hopper (30 mil)
• Single-card feed capability
• ix Series intelligent media technology
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year unlimited warranty on printer and printhead

Printing specifications

• Color dye sublimation or monochrome thermal transfer printing
• Single-sided printing
• Near photographic print quality
• Edge-to-edge printing on standard CR-80 media
• 1,375 cards/hour monochrome single-sided
• 300 cards/hour full-color YMCKO single-sided printing

NOTE: Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.

OPERATING CHARACTERISTICS

Environmental

• Operating Temperature: 59ºF to 95ºF/15ºC to 35ºC
• Operating Humidity: 20% to 80% non-condensing
• Storage Temperature: 23ºF to 158ºF/-5ºC to 70º C
• Storage Humidity: 10% to 90% non-condensing
• Media Storage:
• Temperature: 41ºF to 86ºF/5ºC to 30ºC
• Humidity: 30% to 50% non-condensing
• Do not store in direct sunlight

Electrical

• Auto-switching single-phase AC power
• 90V — 264V AC and 47 — 63Hz (50 — 60Hz nominal)
• FCC Class A

PHYSICAL CHARACTERISTICS

• Length: 10.9"/277 mm
• Width Printer only: 27.5"/699 mm
• Printer with laminator: 38"/964 mm
• Height 12"/306 mm
• Weight Printer only: 26.9 lbs/12.2 kg
• Printer with laminator: 39.5 lbs/17.9 kg

COMMUNICATION AND INTERFACE CAPABILITIES

• USB 2.0
• USB supports plug-and-play printer identification
• 10/100 Ethernet
• 802.11b/g wireless option

SOFTWARE TOOLS

• ZMotif SDK support and sample code
• Microsoft Windows Certified printer drivers with Toolbox utility features: Windows XP (32 bit), Vista (32 and 64 bit), Server 2003 (32 bit), Windows 7 (32 and 64 bit), Server 2008 (32 and 64 bit), Windows 8 and Win 8 Pro (32 and 64 bit), Server 2012 (64 bit)
• CardStudio card design and issuance software
• Zebra Virtual PrintWare software support

Optional features

• Encoding options:
• Smart Card Contact Station
• Contactless Mifare
• Extended product warranty programs
