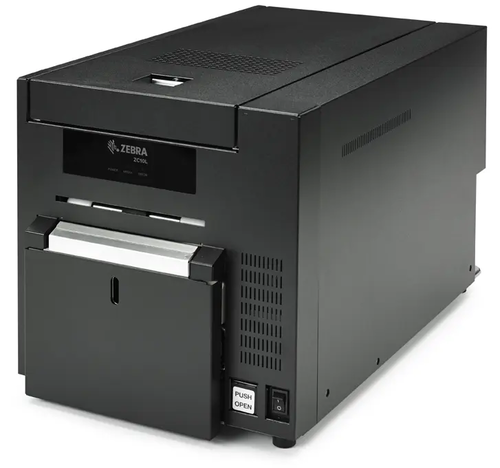

Zebra ZC10L Single Sided ID Card Printer

The Zebra ZC10L Large-format Card Printer

Designed especially to meet Hospitality application needs, Zebra’s ZC10L™ is the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process. Eliminate extra work. With Zebra’s ZC10L large-format printer, you no longer have to pre-order and catalog partially preprinted guest badges and tickets. Print custom, photo-quality cards on demand.  Avoid the hassle of pre-ordering and inventorying partially pre-printed cards.  Reduce the waste of unusable, leftover cards.

Print Full, Edge-to-edge Color Cards in One Step

As the only large-format, direct-to-card printer that can print full, edge-to-edge color cards in one printing process, the ZC10L gives you freedom to customize, eliminates hassle and reduces waste. No need to bother with partially pre-printed cards. Customize the backside of cards with guest instructions or “fine-print” content and print it using Zebra’s monochrome black ribbon

Enjoy Custom Flexibility

Create visually compelling PVC cards with high quality designs using Zebra’s CardStudio design software. You can create full-size card designs without needing to measure card sections for template design or printing.
With the ZC10L’s flexible, on-demand printing, you can even make card design changes right up to the time of your event. You can include sponsor logos, corporate advertising, and take guest photos at the point of entry to further personalize cards and create guest mementos.

Large Cards for Easy Reading

Zebra’s ZC10L printer produces large 3.5” x 5.5” passes and badges that are easy to see and read from a distance. It’s great for branding and increased event security, allowing event staff to identify guests and determine access permission at a distance.

• 300 dpi  print resolution
• 64 MB memory standard
• Card Size 5.5" x 3.46" (140 mm x 88 mm)

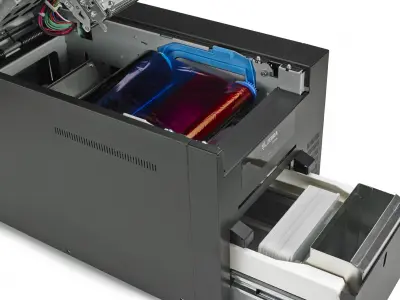

• Ribbon YMCO 4-panel: 400 images/roll
• Monochrome black: 2,000 images/roll
• USB 2.0 connectivity
• USB supports plug-and-play printer identification
• 400 card capacity feeder
• 100 card capacity output hopper
• Multi-status LED operator display
• Printer host authentication and data encryption
• Print Touch NFC tag and Quick Help QR code for online printer help and documentation access
• 1-year unlimited warranty on printer and printhead

• Direct to card — dye diffusion
• Full-color or monochrome printing
• Single-sided printing
• Max print speed single-side YMCKO 200 cph
• Max print speed single-sided K mono 350-425 cph
• Photo-quality images
• Edge-to-edge printing

• Card Thickness 24 mil
• Card Size 5.5" x 3.46" (140 mm x 88 mm)
• Card Material PVC

• Operating Temperature: 50º F to 95º F/10º C to 35º C
• Storage Temperature: -4º F to 131º F/-20º C to 55º C
• Operating Humidity: 20% to 80% non-condensing
• Storage Humidity: 10% to 95% non-condensing
• Shipping Temperature  -40º F to 140º F/-40º C to 60º C
• Shipping Humidity: 10% to 95% inclusive, non-condensing

• Auto-switching AC power
• 90V~264V AC and 48 - 62 Hz

• 11.42 in. H x 10.94 in. W x 19.09 in. D
• 290 mm H x 278 mm W x 485 mm D

• Weight (printer only): 41.9 lbs. / 19 kg

• USB 2.0 — Standard
• USB supports plug-and-play printer identification
• 10/100 Ethernet connectivity (External Print Server Option)

• Microsoft Windows Printer Drivers for: Windows 7, Windows 8, Windows 10,
• Windows Server 2008, and Windows Server 2012,
• Card Studio Classic version 1.3 or later card design and issuance software — single user license key
• Driver Features Auto sensing of ribbon type; Remaining
  card count on ribbon

• Windows drivers include:
• Color coded printer status indicators for the operator
• Black panel extraction and controls for specialty ribbon panels with image preview
• Configuration utility to limit access by operators to change image quality and printer settings
• Advanced printer configuration, security settings and diagnostics capabilities

• Zebra OneCare Service program
• 10/1000 Ethernet connectivity External Print Server
