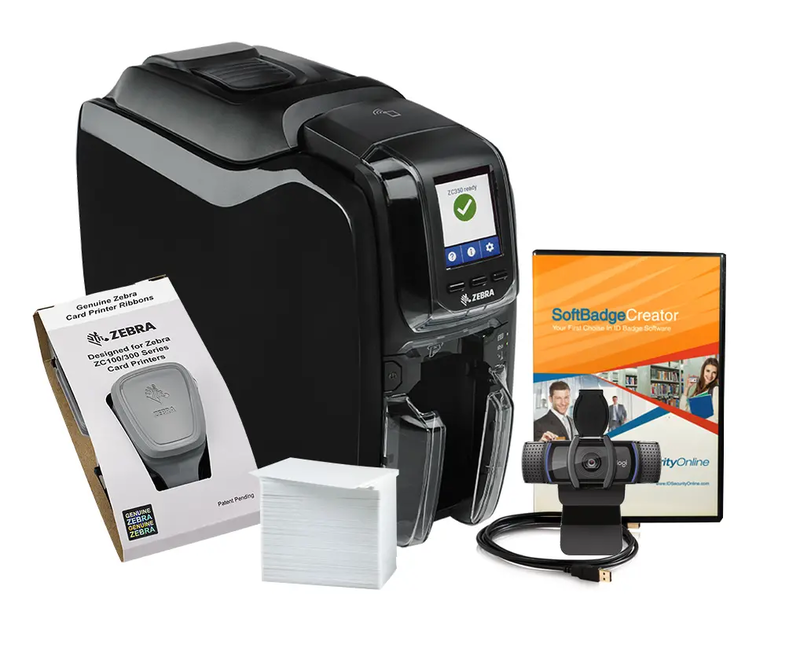

Zebra ZC350 Single Sided Photo ID System
Zebra ZC350 Single Sided Photo ID System
Zebra ZC350 Single Sided Photo ID System Description
When you want it all in a card printer, the ZC350 delivers. Advanced printing options allow you to create virtually any design you can dream up. With support for just about every encoding technology, you can create just about any type of card — credit, debit, identity, access, loyalty, public transportation passes and more. You get the fastest print speeds — up to twice as fast as some competitive printers. With its cool design, the slimmest profile and the lowest clearance, the ZC350 can fit in more spaces than any other printer in its class. The ZC350 Series — the card printer that delivers it all.
Highly graphical LED/LCD interface
The ZC350 offers highly-intuitive well-tested icons, animations and text-based messages in your own language, allowing any user to easily understand what the printer needs and how to perform virtually any function — including how to clear a printer jam, fix a ribbon, load a ribbon or cards and more.
Easily print practically any design you can imagine
The ZC350 is loaded with advanced card production features. Print what you want, when you want, from just about anywhere — edge-to-edge monochrome and color cards, with new ribbons that offer specialty colors and special effects. For example, a new pearlescent ribbon enables you to embed color-shifting graphics that are hard to counterfeit, improving card security. Make logos, text or account numbers stand out with 3D style effects that can be created with a new metallic color ribbon. And a new long life ribbon provides two new capabilities. You can embed a watermark graphic that can only be seen when the card is tilted at an angle or under UV light, improving security. And you can add a highly durable protective layer to create cards that will last for three to five years. And even the most complex design is as easy to print as a basic black and white card.
Painless plug-and-play set-up
The ZC350 is designed to work right out of the box. There’s no time-consuming complicated set-up — just plug it in and start reaping the benefits the day your printer arrives.
A new ingenious card feeder handles varying card thickness on-the-fly
The card feeder instantly adjusts to the thickness of each card — no more adjusting for different card stocks.
Zebra ZC350 Single Sided Photo ID System Specifications
- 300 dpi (11.8 dots/mm) print resolution
- 2 GB flash memory
- Image size: 1006 x 640 pixels
- Auto calibration of ribbon
- USB 2.0 and Ethernet 10/100 connectivity
- 100 card capacity auto-adjusting input hopper (30 mil)
- 100 card capacity output hopper (30 mil)
- Manual card feeding capability with LED bezel
- Graphical color LCD
- 3 Tricolor printer status indicator lights
- Kensington® secure lock slot
- Print Touch NFC tag for online printer help and documentation access
- Printer host authentication
- Data encryption
- Two-year unlimited warranty on printer and printhead
- Dye-sublimation thermal transfer direct to card print method
- Full-color or monochrome printing
- Single-sided printing
- Edge-to-edge printing on standard CR-80 media
- 225 cards/hour single-sided YMCKO
- 1,000 cards/hour single sided monochrome
Supplies Specifications:
NOTE: The ZC350 printer is designed to work only with Zebra
genuine ribbons. Ribbons are included in a simple-to-load cartridge.
- YMCKO* - 200
- YMCKO* - 300
- YMCKOK* - 200
- ½ YMCKO* - 400
- ½ YMCKOKO* - 250
- YMCKLL* - 200
- YMCPKO* - 200
- SrDYMCKO* - 200
- KrO* - 700
- KdO* - 700
- Holographic Overlay* - 500
- Black Monochrome* - 2000
- Black Monochrome - 1500
- White Monochrome* - 1500
- Red Monochrome - 1500
- Blue Monochrome - 1500
- Gold Monochrome - 1500
- Silver Monochrome - 1500
- *Zebra intelligent technology automatically detects and authenticates ribbon
- Cleaning roller is included with each ribbon
- Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)
MEDIA SPECIFICATIONS (CONTINUED)
Card Compatibility:
NOTE: For optimum print quality and printer performance, use of Genuine Zebra supplies is recommended.
- Card Thickness: 10-40 mil
- Card Size: CR80 ISO 7810 ID-1 format, CR79
- Card Material: PVC and PVC composite
- Adhesive back and writable back cards
- Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards
Environmental
- Operating Temperature: 59º F to 95º F/15º C to 35º C
- Storage Temperature: 23º F to 158º F/-5º C to 70º C
- Operating Humidity: 20% to 80% non-condensing
- Storage Humidity: 20% to 90% non-condensing
- Media Storage:
- Temperature: 41º F to 77º F/5º C to 25º C
- Humidity: 35% to 65% non-condensing
- Auto-switching single-phase AC power
- Operating range: 90-132VAC and 190-264VAC RMS
- Frequency range: 47-63 Hz
- FCC Class A
Dimensions 10.2in.H x 6.2in.W x 15.1in.D / 258mmH x 157mmW x 383mmD
Weight 8.8 lbs (4.0kg)
COMMUNICATIONS AND INTERFACE CAPABILITIES
- USB 2.0 — Standard
- Built-in 10/100 Ethernet — Standard
- 802.11ac with MFi — Optional
- Magnetic stripe encoder – ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity) 1
- Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless with 1 SAM Module Slot with support for reading Prox ISO 11784 and iCLASS ISO 15693 and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance 1,2
- ISO 7816 Smart Card Contact Station for third party external contact encoders1
- Third party contactless encoder integration kit1
2. Prox and iClass are standard in NA models and available as an upgrade in EMEA
PRINTER DRIVERS
- Windows Server® 2003 (32 bit)
- Windows Server 2008 (32 and 64 bit),
- Windows 7 (32 bit and 64 bit)
- Windows 8 and Win 8 Pro (32 bit and 64 bit
- compatible)
- Windows Server 2012 (64 bit)
- Windows 10 (32 bit and 64 bit)
- Windows drivers include:
- Color coded printer status indicators for the operator
- Black panel extraction and controls for specialty ribbon panels with image preview
- Configuration utility to limit access by operators to change image quality and printer settings
- Advanced printer configuration, security settings and diagnostics capabilities
Apple iOS 10.2
Please see www.zebra.com for an up-to-date listing of supported systems.
ADDITIONAL OPTIONAL FEATURES
- Lockable enclosure
Multiplatform Software Development Kit (SDK)
Windows C#/.Net and Java Printer Software Development Kit (SDK)
- One SDK download supports Android, Java and Windows environments
- Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
- Enable card printing from Android mobile devices
- Incorporate encryption and host authentication
- Includes documentation and source code examples
Included with the printer, this simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.
Print Touch
With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.
About Print DNA. Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development. Features are subject to availability. Specifications are subject to change without notice.
Warranty
The Zebra ZC350 Single Sided Photo ID System features a 2-year warranty on printer and printhead.
Protect your investment with our extended warranty plans.
To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm
All our extended warranty plans include:
- Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
- Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
- Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.
