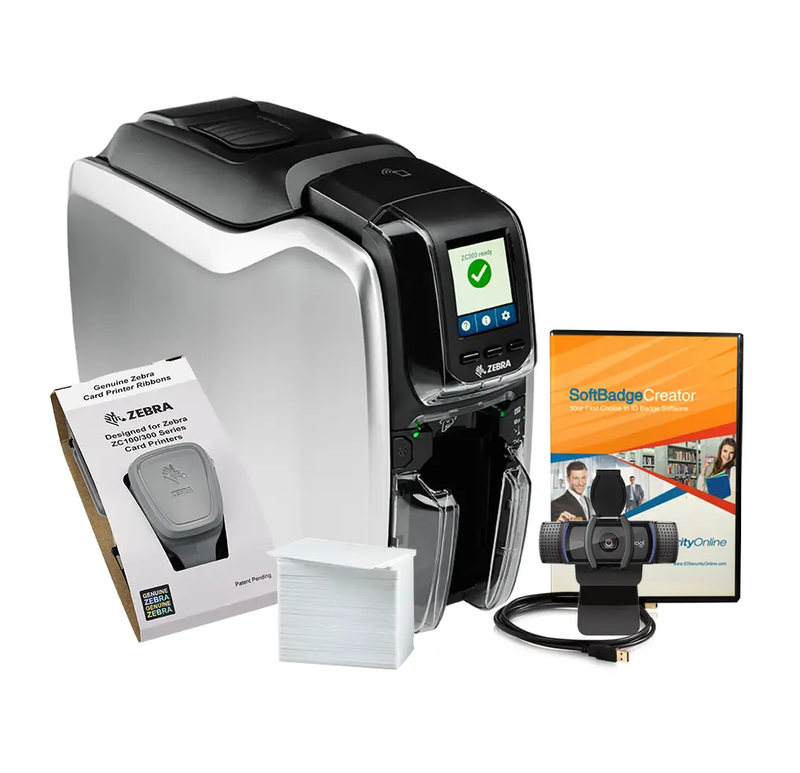

Zebra ZC300 Dual Sided Photo ID System

No matter what type of card you need to print — from identity and access to membership, event and credit/debit cards — the ZC300 will help you do it better, faster and easier. If you can dream it, you can print it — single- or dual-sided, color, black and white or metallic, you can even embed security marks on the fly — a first for a printer in this price point. Add a magnetic stripe or create a contact or contactless card. No matter how complex your cards are, the ZC300 makes it easy — Zebra’s Industrial Design team has elegantly engineered the ZC300 to address and eliminate virtually all pain points associated with card printing. And with a ground-breaking fits-everywhere design, you can get secure card printing wherever you need it. The ZC300 Series — complex card printing made easy.

Revolutionary new hopper design

The completely re-designed hopper makes loading and unloading cards easier than ever. With the saloon-style output doors, there’s nothing to open — just grab one card or the whole stack of cards. And the input and output hoppers have the same capacity, reducing the need to refill and empty the hoppers.

Groundbreaking new driver with a graphical user interface

The intuitive interface in the newly-designed driver makes it easier than ever to print cards. Settings are grouped logically into tabs where they are easily accessible with a click. A visual display of your card makes printing simple monochrome and complex color cards equally easy, allowing you to instantly see how your card looks and how setting changes impact card design — eliminating the time and cost to repeatedly print test cards.

Effortless manual card feed

Manually feeding a card can be complicated — we made it simple with a lightpipe that guides the user through the manual feeding process, the same way that automatic teller machines guide users through their interaction.

STANDARD FEATURES

• 300 dpi (11.8 dots/mm) print resolution
• 2 GB flash memory
• Image size: 1006 x 640 pixels
• Auto calibration of ribbon
• USB 2.0 and Ethernet 10/100 connectivity
• 100 card capacity auto-adjusting input hopper (30 mil)
• 100 card capacity output hopper (30 mil)
• Manual card feeding capability with LED bezel
• Graphical color LCD
• 3 Tricolor printer status indicator lights
• Kensington® secure lock slot
• Print Touch NFC tag for online printer help and documentation access
• Printer host authentication
• Data encryption
• Two-year unlimited warranty on printer and printhead

PRINTING SPECIFICATIONS

• Dye-sublimation thermal transfer direct to card print method
• Full-color or monochrome printing
• Dual-sided printing
• Edge-to-edge printing on standard CR-80 media

Printing throughput (cards per hour) based on batch printing with USB connectivity. Note that times may vary depending on the computer configuration.

• 200 cards/hour single-sided YMCKO
• 140 cards/hour dual-sided YMCKOK
• 900 cards/hour single sided monochrome
• 450 cards/hour dual sided monochrome

Supplies Specifications:
NOTE: The ZC300 printer is designed to work only with Zebra
genuine ribbons. Ribbons are included in a simple-to-load cartridge.

• YMCKO* - 200
• YMCKO* - 300
• YMCKOK* - 200
• ½ YMCKO* - 400
• ½ YMCKOKO*  - 250
• YMCKLL* - 200
• YMCPKO* - 200
• SrDYMCKO* - 200
• KrO* - 700
• KdO* - 700
• Black Monochrome* - 2000
• Black Monochrome - 1500
• White Monochrome* - 1500
• Red Monochrome - 1500
• Blue Monochrome - 1500
• Gold Monochrome - 1500
• Silver Monochrome - 1500

Ribbon availability may vary by region.

• Zebra intelligent technology automatically detects and authenticates ribbon
• Cleaning roller is included with each ribbon
• Two available cleaning kit options: your choice of two (2) or five (5) isopropyl alcohol cleaning cards (1,000 images/card)

• Card Thickness: 10-40 mil
• Card Size: CR80 ISO 7810 ID-1 format, CR79
• Card Material: PVC and PVC composite
• Adhesive back and writable back cards
• Spot color or monochrome printing only on < 20 mil thick cards and CR79 cards

OPERATING CHARACTERISTICS
Environmental

• Operating Temperature: 59º F to 95º F/15º C to 35º C
• Storage Temperature: 23º F to 158º F/-5º C to 70º C
• Operating Humidity: 20% to 80% noncondensing
• Storage Humidity: 20% to 90% noncondensing
• Media Storage:
• Temperature: 41º F to 77º F/5º C to 25º C
• Humidity: 35% to 65% non-condensing

Electrical

• Auto-switching single-phase AC power
• Operating range: 90-132VAC and 190-264VAC RMS
• Frequency range: 47-63 Hz
• FCC Class A

PHYSICAL CHARACTERISTICS

Dimensions: 10.2 in.H x 6.2 in.W x 18.4 in.D; 258 mmH x 157 mmW x 468 mmD

Weight: 9.7 lbs (4.4 kg)

COMMUNICATIONS AND INTERFACE CAPABILITIES

• USB 2.0 — Standard
• Built-in 10/100 Ethernet — Standard
• 802.11ac with MFi — Optional

ENCODING OPTIONS AND SPECIFICATIONS

• Magnetic stripe encoder — ISO 7811 (new and pre-encoded; tracks 1, 2, and 3; high and low coercivity; stripe down and stripe up with duals-sided printers) *
• Combined MIFARE® ISO 14443 A & B (13.56 MHz) contactless with 1 SAM Module Slot and ISO 7816 Contact Encoder with EMV level 1 certification, and PC/SC compliance* (optional module with support for reading Prox® ISO 11784 and iCLASS ISO 15693)
• ISO 7816 Smart Card Contact Station for third party external contact encoders*
• Third party contactless encoder integration kit*

Field upgradeable options

PRINTER DRIVERS

• Windows Server® 2003 (32 bit)
• Windows Server 2008 (32 and 64 bit),
• Windows 7 (32 bit and 64 bit)
• Windows 8 and Win 8 Pro (32 bit and 64 bit
• compatible)
• Windows Server 2012 (64 bit)
• Windows 10 (32 bit and 64 bit)

Windows drivers include:

• Color coded printer status indicators for the operator
• Black panel extraction and controls for specialty ribbon panels with image preview
• Configuration utility to limit access by operators to change image quality and printer settings
• Advanced printer configuration, security settings and diagnostics capabilities

Linux Ubuntu
Apple iOS 10.2

• Card flipper for dual-sided printing*
• 10 card reject bin is standard with dual-sided printers*
• Lockable enclosure*

• One SDK download supports Android, Java and Windows environments
• Easily build card-printing apps with complete control over print functionality from Windows, Linux, Mac OS and Android environments
• Enable card printing from Android mobile devices
• Incorporate encryption and host authentication
• Includes documentation and source code examples

CardStudio
Included with the printer, this simple-to-learn and feature-rich card design software that makes it easy to design loyalty cards, gift cards, ID cards and more.

Print Touch
With a single tap, you can use Android-based mobile devices to access how-to and troubleshooting information to help keep printers up, running and available.

About Print DNA. Print DNA propels your Zebra Link-OS for Card printers into a class of their own, providing Zebra-only software tools that make life easier for everyone who touches your printers, from printing to printer management and application development.
