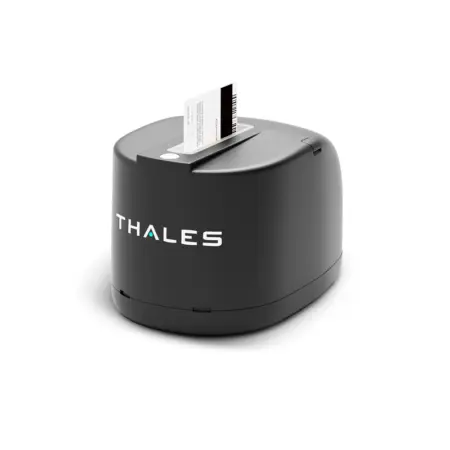

Thales Gemalto ID Card Reader CR5400
To comply with laws and protect your business from fraud, you need to quickly and accurately collect information and determine whether an ID is genuine.

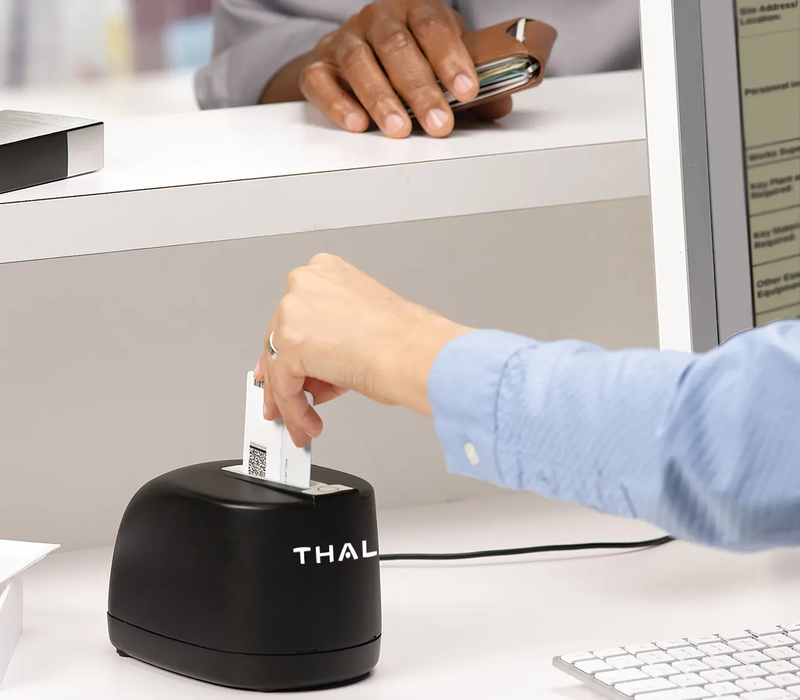

Thales Gemalto Double-sided ID Card Reader CR5400, part of our document reader solutions, scans and checks IDs in double-time, reading the front and back simultaneously.
There's no wrong way to insert the card into the ID reader – all you need to do is drop it in.
The color-coded LED lights provide a real-time status response, and it automatically ejects the card once it has been read.
You can verify customer IDs in seconds.
The reader is designed for:
- Banks and Financial Institutions,
- Border Management,
- Hospitals,
- Care Facilities and Pharmacies,
- Hotels and Casinos, Retail Stores,
- Schools and Universities.
Minimum PC Specification
Software must be installed on a customer-supplied PC, some aspects of the read speed may be affected by PC specification. The following minimum configuration is recommended:
• 2 GHz Pentium® 4 CPU (Intel Core 2 Duo recommended)
• 1 GB DRAM
• USB 2.0
• 60 MB of Hard Drive space for software
• Windows® 7, Windows® 8.1 or Windows® 10 operating systems, 32 or 64 bit
• Builds for Ubuntu and CentOS LTS, 32 & 64 bit
• macOS (limited SDK functionality)
Power
• USB Powered Imager — USB Powered
• Imager and Cradle — 1.2A, 5V, Universal input wall-mount external power supply
Cradle Options
The cradle can have the following factory fit options:
• eID RFID
• MSR: ISO 7810 and ISO 7811 AAMVA 3-Track Mag
• Contact smart card according to ISO7816
• NOTE It is not possible to install both MSR and contact smart card options at the same time
Firmware Upgrade
• Upgradeable firmware via USB 2.0 interface
• Non-volatile memory for configuration and calibration accessed via USB 2.0 interface
Regulatory
• FCC Part 15 Class A
• UL, UL-C
• CB report
• CE — RED, LVD & EMC
• EU WEEE, REACH & RoHS Directives
Operating Environment
• Humidity: 20 to 95% (R.H. non-condensing)
• Temperature: 0º to 40º C operating; ?20º to 50º C storage
Standard Dimensions
Imager Only Imager and Cradle
• Length: 15.5 cm / 6.1? 17.7cm / 7.0?
• Width: 10.8 cm / 4.3? 10.8cm / 4.3?
• Height: 10.2 cm / 4.0? 12.5cm / 4.9?
• Weight: < 1 Kg / 2.2 lbs 1.1Kg / 2.4lbs
Service & Maintenance
• Two-year warranty
• Annual maintenance agreement available
• Each reader is supplied with one cleaning card
