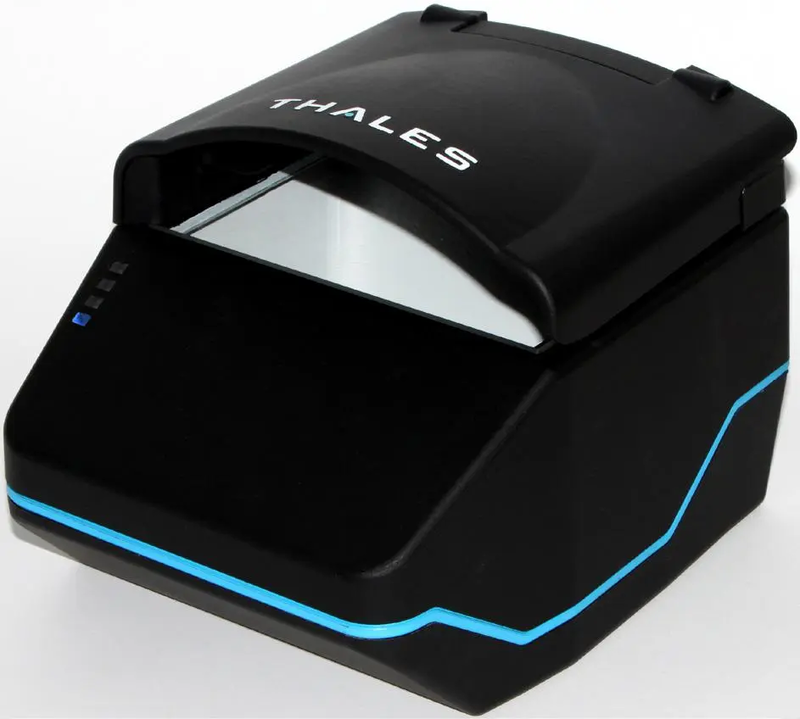

Thales Gemalto Document Reader QS2000

AUTOMATED CAPTURING BENEFITS

• Reduced customer queues and happier customers
•  More accurate data input and automated form filling
• Faster registration process leading to reduced costs
• No need to photocopy documents providing higher security and compliance to GDPR
• Compatible with local applications connected to cloud services Functions include:
• Optional support for biometrically enabled travel documents and driving licenses containing contactless integrated circuit chips (eIDs, eDLs and ePassports)
• Accurate, true-color visble images at 400dpi
• Reads 1D and 2D barcodes from driving licenses
• China NID card RFID reading option Reading Capability The Gemalto Document Reader QS2000 reads the following documents:
• ICAO compliant documents in visible white light
• One line driving licenses per ISO18013 part 2 specification
• 1D barcodes (2 of 5 interleaved, 2 of 5 industrial, Code 128, Code 39, UPC-A, EAN-8 and EAN-13)
• 2D barcodes used on driving licenses and other documents (PDF 417, QR Code®, DataMatrixTM and Aztec formats)
• AAMVA parser decodes North American driver license barcodes

KEY FEATURES & FUNCTIONALITY

• Multiple document reading and imaging using true- color image matching
• Single wavelength illumination – Visible
• Anywhere placement of ID cards
• OCR data capture of the Machine Readable Zone (MRZ)
• Complete access to OCR data and images captured via Software Development Kit (SDK)
• Access to images as BMP, PNG or JPEG format
• Auto-triggering of document capture – presence of document is automatically detected using visible light
• Windows® 7, Windows® 8.1, Windows® 10, mac OS and Linux® compatible
• USB 2.0 or USB 3 high speed compatible via high speed USB 3.1 Type-CTM host port
• Rugged design, no moving parts and internally sealed optical chamber to prevent dust ingress
• Chemically Strengthened Glass for advanced durability
• Powered from a single USB 500mA port
• Upgradeable firmware via USB 2.0 interface
• Non-volatile memory for configuration and calibration accessed via USB 2.0 interface
• Power consumption: 5 volts DC, keeping within USB port power limit, 500mA for USB 2.0, 900mA for USB3.1 Type A and 1.5A for USB-C.
• Optional power injection cable if PC cannot supply stable USB power

• Weight:   1.7 lbs (0.8 kg)
• Length: 7.3” (18.5 cm)
• Width: 6.0”  (15.3 cm)
• Height with light shield: 5.2”  (13.2 cm)
• Window size: 125 x 90 mm
