IDP Smart-31S Single Sided ID Card System Description

Entry-Level Simplex ID Card Printer for Small Organizations

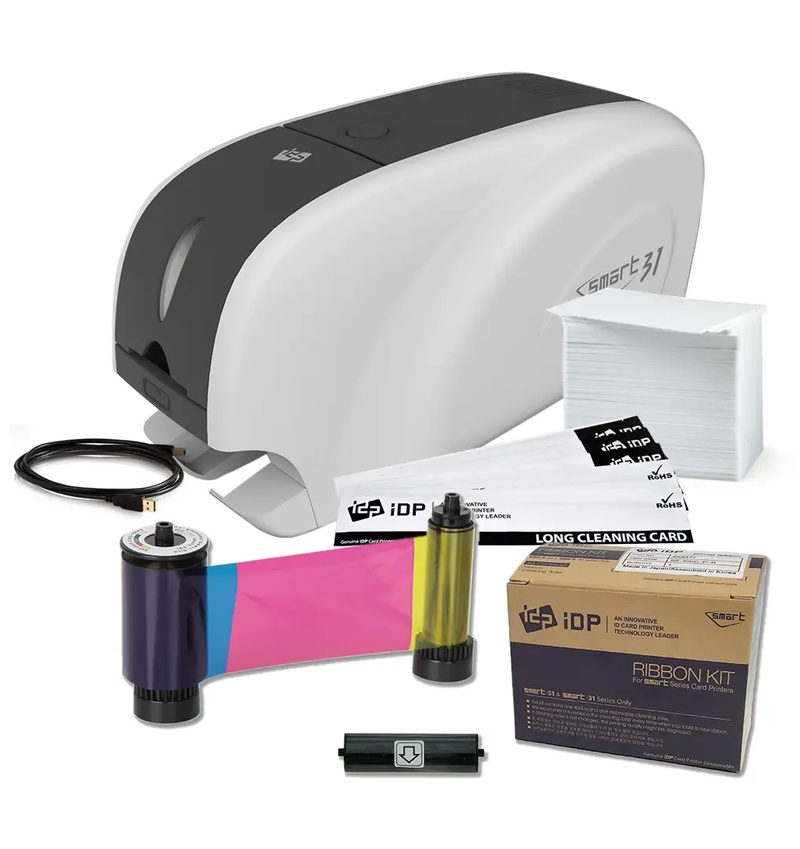

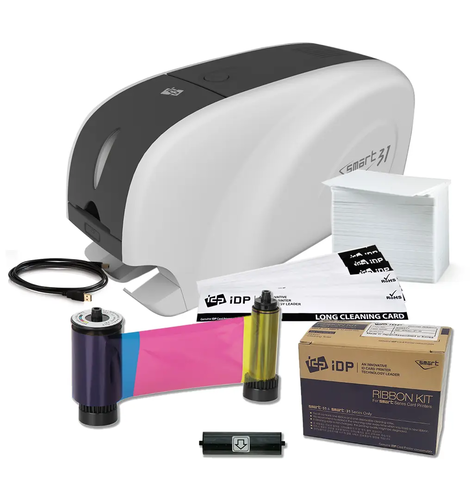

IDP’s easy to use SMART-31S printer with One 250 Print YMCKO Ribbon, 100 Primus PVC Cards and One Long Cleaning Card will produce full-color or monochrome cards reliably for years. Its time-test design provides robust printing speeds, excellent image reproduction and cost savings.

The SMART-31S offers a wide range of optional features including Ethernet, smartcard encoding, and ultra violet (UV) printing. Now small businesses can afford to produce their own ID Cards.

IDP Smart-31S Single Sided ID Card System Specifications

PRINTING

Print Type: Dye-Sublimation
Print Area: Edge to Edge
Resolution: 300dpi
Dual Sided Printing: Option (with Flipper)

CARD

Card Feeding: Automatic
Card Size: ISO CR80 (54mm x 86mm/2.12” x 3.38”)
Card Thickness: 0.38mm (15mil), 0.76mm (30mil)
Card Type: PVC, PET, Composite PVC

PRINT SPEED

Monochrome: 5 sec./card (720 cards/hour)
YMCKO: Max. 23 sec./card (156 cards/hour)

CAPACITY

Input Hopper: 80 cards
Output Hopper: 25 cards

ENCODING OPTIONS

Magnetic: ISO7811(TrackI, II, III Read/Write, HiCo/LoCo), JISII
Contact: ISO 7816 (ID-1)
Contactless: MIFARE, ISO 14443 (Type A/B), ISO 15693 DESFIRE, iCLASS

SYSTEM

Memory: 64MB RAM
Control Panel: 1 LED Button
Supported Platforms: Microsoft Windows 2000/2003/XP/ Vista/7/8/10, Mac OS, Linux
Communication: USB, Ethernet (Option)
Power Supply: Free Voltage (AC100/200V, 50~60Hz)
Power Consumption: 48
Temperature/Humidity: 15~35°C/35~70%

DIMENSIONS

Millimeter (WxLxH): 172 x 377 x 190
Inch (WxLxH): 6.8 x 14.8 x 7.5

WEIGHT

Kg/lbs: 3.4/7.5

WARRANTY

3-Year

Card Printer Supplies

Product Name	SKU	MSRP	Discount Price
IDP Smart-31 & Smart-51 YMCKO Full-color ribbon with cleaning roller - 250 cards/roll	SKU: 659366	MSRP: $91.00	Price: $76.00	Check to Add
IDP K Resin Black ribbon with cleaning roller - 1200 cards/roll	SKU: 659367	MSRP: $31.00	Price: $26.00	Check to Add
IDP IDP SMART-31 & SMART-51 Cleaning Roller Kit (10pcs)	SKU: 659005	MSRP: $60.00	Price: $50.00	Check to Add
Asure ID Express 7 Software - Digital Delivery	SKU: 086512	MSRP: $993.00	Price: $535.00	Check to Add
CR80.30 (30 Mil) White PVC Cards - Qty. 500	SKU: 81754	MSRP: $57.50	Price: $45.00	Check to Add
3 in 1 Photo ID Card Table Top Slot Punch	SKU: 145078	MSRP: $69.00	Price: $55.00	Check to Add
3/8" (10 mm) Breakaway Lanyard with Nickel-Plated Steel Swivel Hook	SKU: 2137-50XX	MSRP: $60.00	Price: $41.67	Check to Add
Microsoft LifeCam Studio ID Camera	SKU: Q2F-00013	MSRP: $249.00	Price: $105.00	Check to Add

Warranty

The IDP Smart-31S Single Sided ID Card System features a 3-year warranty.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.

Questions? Call us today at 800-897-7024 to speak with an ID expert.
