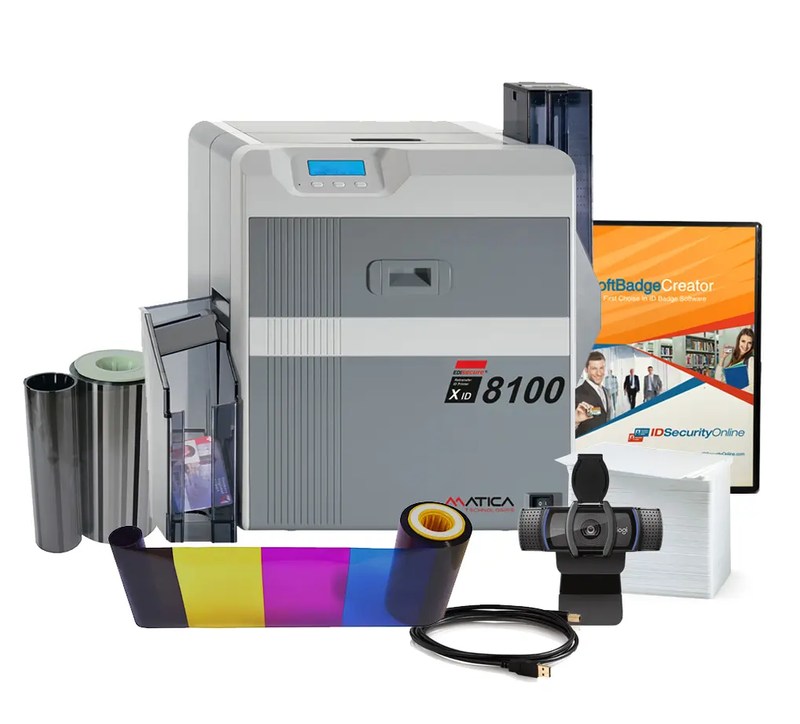

Name: Matica XID8100 Single Sided Retransfer Photo ID Card System
Brand: Matica
SKU: MaticaXID8100System
Price: 3385 USD
Availability: InStock

Matica XID8100 Single Sided Retransfer Photo ID Card System Description

Printing on PVC cards differs in many ways from printing on paper and therefore requires specific technology. The Matica XID8100 retransfer system is the perfect solution for the regular day-to-day demand to personalize all kind of PVC cards.

Due to the retransfer printing technology, the XID8100 can print over-the-edge without any limitations to the PVC card design and graphic layout. The proven modular concept enables the PVC card printer to follow upgrade demands at any time. As a standard, the XID8100 is coming in a single side version, but various additional modules, such as flipper module, bend remedy module as well as a selection of encoders can be added on demand. A wide choice of in-line lamination modules to further protect the card against any physical impact or to make it even more secure, can be attached to the PVC card printer.

The retransfer technology allows the printer to print on all kind of card materials, such as PVC, ABS, PET, hybrid card constructions and even Polycarbonate. The lockable hopper and the front-loading system with replaceable cartridges for the ribbon and the retransfer film make changing the supplies fast and simple.

To connect the Matica XID8100 to a PC the USB and Ethernet interfaces are available as a standard. All necessary information about the PVC printer and its status are shown on the LCD display and the settings can be altered using the 4 push buttons right below the LCD display.

The print engine is based on a metal frame chassis, hence it is a very solid and precise printing module. The compact and attractive design make the XID8100 fit into any office environment and offers an outstanding price-value performance. As all retransfer printers from Matica Technologies, the XID8100 comes with a life time warranty for the print head when using the proper consumables from Matica. For more information about the XID8100 and the PVC card printer price please contact our offices.

Matica XID8100 Single Sided Retransfer Photo ID Card System Specifications

PRINT METHOD

Dye-sublimation retransfer

PRINT MODE

Single-sided over-the-edge retransfer printing

PRINT RESOLUTION

300 dpi

PRINT SPEED

Up to 102 cards per hour

CARD TYPES

PVC, Composit e PVC, ABS, PET and
Polycarbonate Cards of ISO ID -1/CR-80 size (85.60 x 53.98 mm)

CARD THICKNESS

0.25 - 1.02 mm (hopper adjustement required)

INPUT HOPPER CAPACITY

200 cards (0.76 mm)

OUTPUT HOPPER CAPACITY

100 cards (0.76 mm)

INTERFACE

USB 2.0 and Ethernet

OPERATING SYSTEM SUPPORT

Windows 7, 8,10 (32 & 64bits)

POWER SUPPLY

100/120 V and 220/240 V, 50/60 Hz FCC, CE, UL, GOST-R, and CCC approved

OPERATING ENVIRONMENT

15°C to 30°C, 35% to 70% noncondensing humidity

PRINTER DIMENSIONS

343 x 322 x 360 mm (WxDxH)

WEIGHT

13.9 kg (excluding optional built-in items)

WARRANTY

Printer: 24 months
Printhead: Lifetime warranty using EDIsecure® materials
(other conditions apply)

Product Name	SKU	MSRP	Discount Price
Matica XID8100 SRT YMCK Color Ribbon - 1000 prints	SKU: PR000809	MSRP: $285.00	Price: $238.00	Check to Add
Matica XID series 0.5mil Clear Patch Ribbon	SKU: PR20808406	MSRP: $175.00	Price: $146.00	Check to Add
Matica XID series 1.0mil Clear Patch Ribbon	SKU: PR20808401	MSRP: $195.00	Price: $163.00	Check to Add
Matica XID series 1.0mil Clear Patch Ribbon with cut-out for ISO Contact Chip cards	SKU: PR20808402	MSRP: $225.00	Price: $188.00	Check to Add
Matica XID series Overlay Ribbon with “Card-Waves” Design	SKU: DIC10176	MSRP: $445.00	Price: $371.00	Check to Add
Logitech C920S Pro HD Webcam	SKU: 960-001257	MSRP: $125.00	Price: $95.00	Check to Add
Matica ILM-DS Dual Side Lamination Module with Upper and Lower cassette	SKU: DIH10462	MSRP: $3995.00	Price: $3329.00	Check to Add
Matica ILM-LS Single Side Lamination Module with Lower cassette	SKU: DIH10461	MSRP: $2995.00	Price: $2496.00	Check to Add
Matica XID series Cleaning Kit, ILM-LS/DS - 10	SKU: DIK10044	MSRP: $95.00	Price: $79.00	Check to Add
Matica XID series Clear "Half Patch" - 0.5 Mil	SKU: DIC10507	MSRP: $190.00	Price: $158.00	Check to Add
Matica XID series Large Adhesive Roller Cleaning Cards (Packs of 10 cards)	SKU: SP-X-2087	MSRP: $90.00	Price: $75.00	Check to Add
Matica XID series1.0mil Clear patch with chip cut-out for ISO Contact Chip cards	SKU: PR20808403	MSRP: $225.00	Price: $188.00	Check to Add
Matica XID8100 SRT Retransfer Film - 1000 prints	SKU: PR000839	MSRP: $98.00	Price: $82.00	Check to Add
