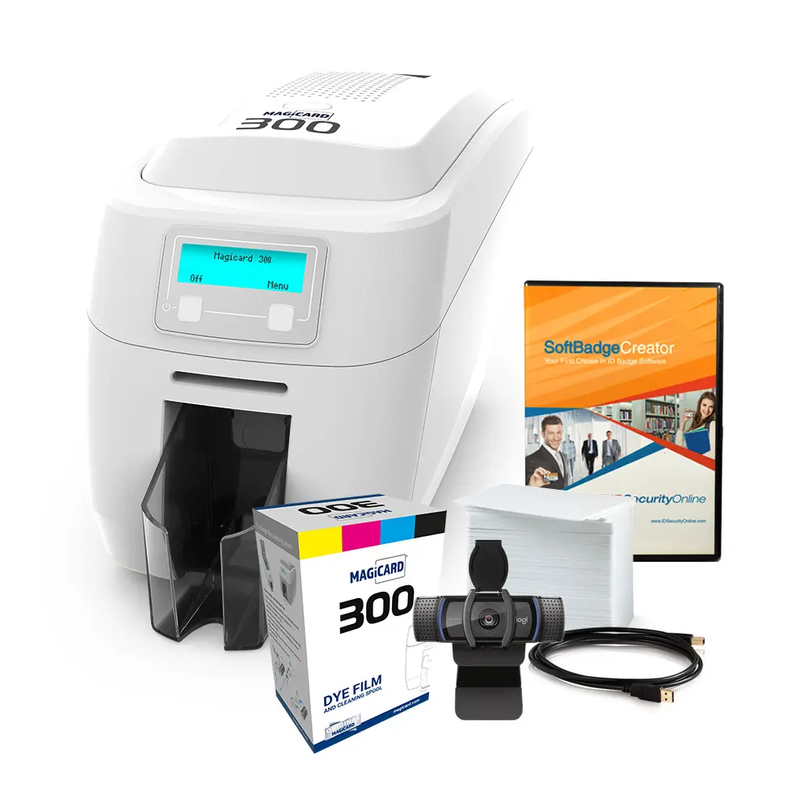

Magicard 300 Single Sided ID Card System

Reliability and security: built in.

Robust, durable and reliable, the Magicard 300 is perfect for schools, colleges and medium sized businesses that print up to 10,000 cards per year. When it comes to secure and reliable ID card printing, you can trust the Magicard 300 to deliver.

High quality - The Magicard 300 offers a wide color spectrum and prints at 300 x 300 dpi great for photographs on ID cards and more accurate depiction of corporate logos and other images.

Easy to use - to get you up and running quickly and easily, the Magicard 300 integrates with existing network infrastructure out of the box via USB, minimizing set-up time and requiring little technical knowledge.

Flexible - batch print with the interchangeable 100-card feeder or print one-offs or rewritable cards with the hand-feeder. Upgrade a single-sided Magicard 300 to double-sided printing through the electronic upgrade kit.

Efficient - The Magicard 300 firmware analyzes the colors sent by the driver and the film type fitted and prints the panels in a sequence so that film panels are not wasted.

Resilient - Built with high performance purpose-built materials and advanced components, the Magicard 300 is designed and manufactured at Magicard's centre of excellence for manufacturing in the UK and is backed by 24/7 Technical Support and warranty.

Fast speeds - each full color, single-sided card, with HoloKote®, can be printed in under 23 seconds while a resin-only version takes fewer than 6 seconds.

Updates and upgrades - The Magicard 300 is easy to keep up-to-date with the latest features and fixes as and when they are available.

Print mode

Color dye sublimation, monochrome thermal printing and rewritable technology.

Print speed - single-sided

• Color: 23 seconds per card / 160 cards per hour
• Monochrome: 6 seconds per card / 720 cards per hour

Card security

A HoloKote® security watermark can be printed across the card surface. The Magicard 300 comes with 3 standard designs and allows you to add up to 3 custom designs such as your company logo, or some other unique security design.

When used with HoloPatch® cards, one area of the HoloKote® watermark can be highlighted as a high visibility security seal.

Encoding security options

• Magnetic stripe encoding: HiCo and LoCo ISO 7811
• Smart card encoding: Contact chip, MIFARE®, DESFire® and iClass®. Others available

Warranty

3 years limited warranty with direct access to the global Magicard technical support team

Card capacity

• 100 card feeder
• 70-card stacker

Printer interfaces

High Speed USB 2.0, USB 3.0 compatible - Type B, 10/100 Ethernet. External Host USB Port

Driver compatibility

Windows 7, 8, 10 (32 and 64bit) Windows server 2008, 2012, 2016. Linux with CUPS support and Mac OS X 10.9.0 upwards

Weight

4.98kg /10.9lb

Power source

External power supply 100-240V 50-60Hz autoranging

Dimensions

408mm L x 215mm W x 242mm H / 16in L x 8.5in W x 9.5in H (including feeder and stacker)

Operating environment

Sheltered office environment 10°C to 30°C / 50°F to 85°F
