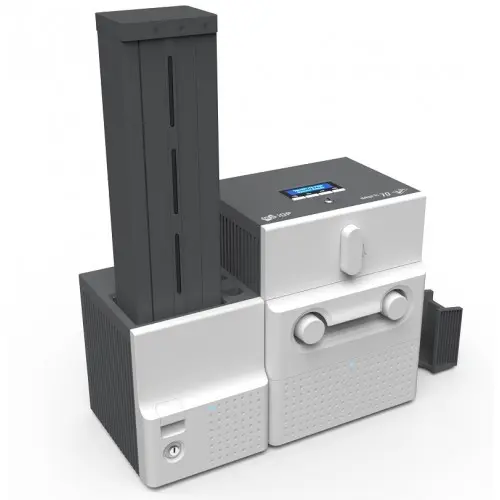

IDP Smart-70 Single Sided ID Card Printer with Lamination

If you run high-volume batches of single-sided, professional, color or monochrome cards that need laminated, the IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination is an excellent option. Featuring high speed printing with a 500-card output hopper, the IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination gives you the long-lasting protection of lamination to extend the life of your cards.

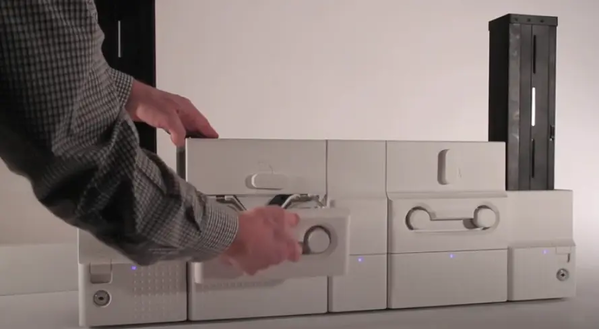

Modular Configuration

Choose the modules that make the most sense for your printing application:

• Input hopper. Large 500 capacity hopper can sense and alert when it's nearing empty.
• Printer. High speed printing of 1,000 cards per hour monochrome and 225 cards per hour color.
• Hybrid flipper. This card flipper offers installable encoding modules for contact / contactless smart cards. Also includes image scanning and barcode recognition.
• Laminator. This scratch-free module has a drawer-type fit cartridge and LCD button and indicator LED.
• Output hopper. Large 500 capacity hopper can sense and alert when it's filled to capacity.
• Stacker. Optional stacker can hold 100 card maximum.

Smart Lamination

The IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination uses Instant Direct Heating so there's no warm-up time necessary. You can use the laminator module a stand-alone unit without need for a device driver or a PC.

Smart Applications

What makes the IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination a smart choice is the applications that help you issue high quality cards and manage your database at no extra cost.

• Smart ID Software lets you design and print images, photos, text, sequential numbers, and more. It also offers auto face detection and size adjustment and positioning. Plug-ins are available for external devices like a signature pad, camera, and scanner. The software also lets you manage and maintain your database.

Security Features

Security is one feature you don't want to skimp on. The IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination offers effective security features like access control and data encryption.

Password verification function provides your administrator and user authentications for security, while data is encrypted during transmission. The IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination supports SSL protocol on its ethernet communications. Finally, the optional encoding modules can be set for a specific authorized PC to eliminate the chance of unauthorized access.

Networking

You can utilize a network printer server with your IDP Smart 70 Single-Sided ID Card Printer with Single Side Lamination for both printing and encoding smart cards. Print and encode contact / contactless smart cards through the network.

Encoding Options

Choose optional modules for use in the Hybrid Flipper to issue cards with contact / contactless smart card encoding. The Flipper can also can 300dpi and 600dpi images.

Suitable for All Solutions

The IDP Smart 70 Single-Sided Card Printer with Single Side Lamination is ideal for any high-volume card production, but works especially well for Kiosk printing solutions.

Printing

• Print Type: Direct Dye sublimation
• Print Area: Edge-to-edge
• Resolution: 300dpi

Card

• Card Feeding: Automatic
• Card Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Card Thickness: 0.38mm (15ml), 1.2mm (47mil)
• Card Type: PVC, PET, Composite PVC

Print Speed

• Monochrome: 3.6 seconds/card (1,000 cards/hour)
• YMCKO: Max 16 seconds/card (225 cards/hour)
• YMCKOK: Max 22 seconds/card (164 cards/hour)

Capacity

• Input Hopper: 500 cards
• Output Hopper: Stacker—100 cards / Optional output hopper—500 cards

System

• Memory: 64MB RAM
• Control Panel: 2 Line LCD, 4 buttons, 1 LED indicator
• Supported Platforms:  Microsoft Windows 2000/ 2003/ XP/ Vista/ 7/ 8/ 10, Mac OS, Linux
• Communication: USB, 2 USB Host, Ethernet
• Power Supply: Free Voltage (AC100/200V, 50~60Hz)
• Power Consumption: 24V, 2A
• Temperature/Humidity:  15~35°C / 35~70%

Security

• Physical lock: Ribbon
• Station: Kensington lock
• S/W: PC authentication, password authentication

Dimensions

• Millimeter (WxLxH):  240 x 214 x 305
• Inch (WxLxH):  9.5 x 8.4 x 12

Weight

• Kg/lbs: 6.3 / 13.9

Hybrid Flipper

Encoding Sensor

• Contact: ISO 7816 A/B/C cards, ISO 7816 1/2/3/4 Microprocessor cards
• Contactless: ISO 14443 (Type A/B), MIFARE, DEFIRE, iCLASS, ISO 18092(NFC), Felica
• Scanner: 300 & 600 dpi image scanning
• Barcode: 1D & 2D Barcode recognition (front/back)

System

• Communication: USB
• Power Supply: Free Voltage (AC100/200V, 50~60Hz)
• Power Consumption: 24V, 2A
• Temperature/Humidity:  15~35°C / 35~70%

Security

• Physical lock: Encoder
• Station: Kensington lock

Dimensions

• Millimeter (WxLxH):  110 x 204 x 305
• Inch (WxLxH):  4.3 x 8.0 x 12

Weight

• Kg/lbs: 2.8 / 6.2

Laminator

Laminating

• Type: Direct heat lamination
• Film (clear & holographic): 0.6mil, 1.0mil
• Speed: 14 seconds per cards (single-sided)
• Capacity: 500 cards per roll

System

• Interface: 2 Lind LCD, 4 buttons, 1 LED indicator
• Communication: USB, RS-232C
• Power Supply: Free Voltage (AC100/200V, 50~60Hz)
• Power Consumption: 24V, 2A
• Temperature/Humidity:  15~35°C / 35~70%

Security

• Physical lock: Laminating film
• Station: Kensington lock

Dimensions

• Millimeter (WxLxH):  240 x 214 x 305
• Inch (WxLxH):  9.5 x 8.4 x 12

Weight

• Kg/lbs: 6.1 / 13.4

Input/Output Hopper

Capacity

• Input/output: Max 500 cards
• Feeding: Automatic

Card

• Size: ISO CR80 (54mm x 86mm / 2.12" x 3.38")
• Thickness: 0.38mm (15mil), 1.2mm (47mil)
• Type: PVC, Composite PVC, PET

Sensor

• Residual Quantity Sensor: Input—Near Empty & empty / Output—Full space
• Detection Sensor: Cartridge Mount Status Detectable

System

• Communication: USB, RS-232C
• Power Supply: Free Voltage (AC100/200V, 50~60Hz)
• Power Consumption: 24V, 2A
• Temperature/Humidity:  15~35°C / 35~70%

Security

• Physical lock: Cartridge
• Station: Kensington lock

Dimensions

• Input Hopper—Millimeter (WxLxH):  170 x 204 x 548
• Input Hopper—Inch (WxLxH):  6.7 x 8.0 x 21.6
• Output Hopper—Millimeter (WxLxH):  149 x 204 x 548
• Output Hopper—Inch (WxLxH):  5.9 x 8.0 x 21.6

Weight

• Input Hopper—Kg/lbs: 3.7 / 8.2
• Output Hopper—Kg/lbs: 3.5 / 7.6
