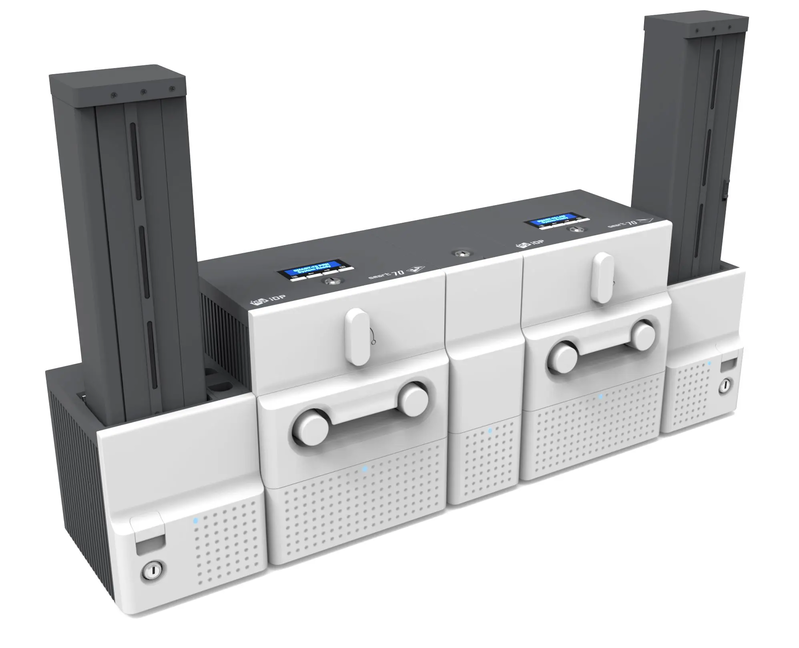

IDP SMART-70 Dual Sided ID Card Printer with Lamination and 500-Card Output Hopper
IDP SMART-70 Dual Sided ID Card Printer with Lamination and 500-Card Output Hopper
IDP SMART-70 Dual Sided ID Card Printer with Lamination and 500-Card Output Hopper Description
IDP Smart-70 a high-performance large capacity ID card printer designed by the unique modular concept that can support various printer configurations to meet different user requirements
- Dual sided Printing & Laminating
- Input Hopper + Printer + Hybrid Flipper + Laminator + Card Output Hopper combination
- High Speed Printing Max. 1,000 cards/h (Mono), Max. 225 cards/h (YMCKO)
- High Speed Laminating 19 sec./card (Single-sided Laminating)
- Large Capacity Max. 500 cards loading
- Drawer type ribbon & Film cartridge
- High Durability / Physical Lock & Kensington Lock
- Installable MS, Contact & Contactless Encoder
- Image Scanning & Barcode Recognition
- Dual Sided Image Scanning (600/300dpi)
IDP SMART-70 Dual Sided ID Card Printer with Lamination and 500-Card Output Hopper Specifications
Printing
- Print Mode: Dual Sided
- Print Type: Direct Dye-Sublimation
- Print Area: Edge to Edge
- Resolutions: 300dpi
Card
- Card Feeding: Automatic
- Card Size: ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
- Card Thinkness: 0.38mm (15mil) ~ 1.2mm (47mil)
- Card Type: PVC, Composite PVC, PET
Print Speed
- Monochrome: 3.6 sec./card (1,000 cards/hour)
- YMCKO: Max. 16 sec./card (225 cards/hour)
- YMCKOK: Max. 22 sec./card (164 cards/hour)
Capacity
- Input Hopper: Card 500 or 300 cards Cartridge Selectable
- 500-Card Output Hopper
Laminating
- Type: Direct Heating Lamination
- Speed: 19 sec./card (Single-sided Laminating)
Laminating Film
- Type: Clear, Holographic
- Thickness: 0.6mil, 1.0mil
- Capacity: 500 Cards/Roll
Scanner Option
- Image Scanner: Selectable 300 & 600 dpi Dual-sided image scanning resolution
- Scanning Speed: 4.5sec/card (300 dpi), 6sec/card (600 dpi)
- Barcode Recognition: 1D & 2D Barcode Recognition (Front/Back)
Sensor
- Residual Q'ty Sensor: Near Empty & Empty
- Detection Sensor: Cartridge Mount Status Detectable
System
- Memory: 64MB RAM
- Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
- Supported Platforms: MS Windows 7/ 8 /10, Mac OS, Linux
- Communication: USB, 2 USB Host, Ethernet
- Power Supply: Free voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption: 24V, 8.3A
- Temperature: 15~35℃
- Humidity: 35~70%
Security
- Physical Lock: Card, Ribbon & Film / Encoder or Error Card
- S/W: PC authentication, Password authentication
- Station Itself: Kensington Lock
Dimensions
- Milimeter: 760 (W) x 214 (L) x 548 (H)
- Inch: 30 (W) x 8.4 (L) x 21.6 (H)
Weight
- Kg/Lbs: Approx. 18.9 Kg/34.4 lbs
Error Card Bin
- Error Card Bin: Ejection device for faulty card is equipped inside Flipper (Max. 30 cards) * If encoder or scanner options are not selected, Error Card Bin will be provided.
Warranty
The IDP SMART-70 Dual Sided ID Card Printer with Lamination and 500-Card Output Hopper features a 3-year warranty on printer and 2-year warranty on printhead.
Protect your investment with our extended warranty plans.
To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm
All our extended warranty plans include:
- Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
- Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
- Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.
