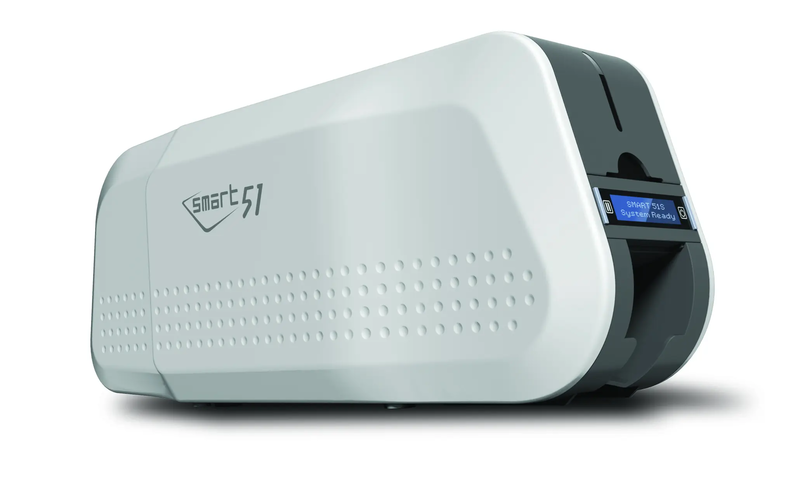

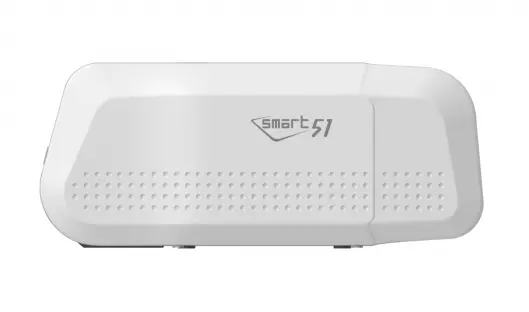

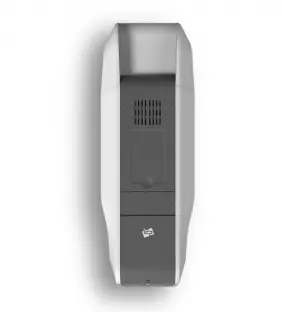

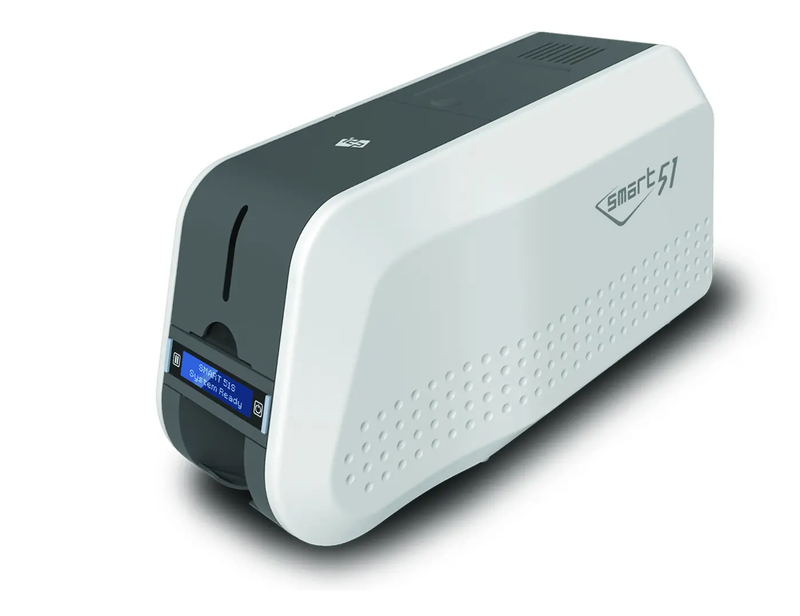

IDP Smart-51S Single Sided ID Card Printer Description

IDP’s new SMART-51 is the next generation of its mid-range ID Card Printer platform.

The SMART-51 inherits the most successful and proven elements of the SMART-50 series printer to ensure the reliability. The upgraded SMART-51 will provide the most appropriate card issuance experience.

SMART-51 is upgraded with 10% faster print speed compared to the former SMART-50 series ID Card Printer.

SMART-51 is equipped with the Metal Frame body for the printing engine making sure to maintain long-lasting hardware structure and stable card printing quality.

IDP Smart-51S Single Sided ID Card Printer Specifications

PRINTING

Print Mode: Single-Sided
Print Type: Direct Dye-Sublimation
Print Area: Edge to Edge
Resolutions: 300dpi (Color & Mono), 600 & 1200dpi (Mono only)

CARD

Card Feeding: Automatic
Card Size: ISO CR80 or ISO CR79 (Option-Factory installed)
Card Thickness: 0.38mm (15mil) ~ 1.0mm (40mil)
Card Type: PVC, PET, Composite PVC

PRINT SPEED

Monochrome:5 sec./card (720 cards/hour)
YMCKO: Max. 17 sec./card (212 cards/hour)

CAPACITY

Input Hopper: Card: 100 Cards / 200 Cards with cover open
Output Hopper: Card: Front : 40 Cards / Rear : 100 Cards (Optional Rear-side Stacker)

SYSTEM

Memory: 64MB RAM
Interface: 2 Line LCD / 2 LED Buttons
Supported Platforms: Microsoft Windows 7/ 8 /10, Mac OS, Linux
Communication:USB, Ethernet, WiFi (Option)
Power Supply: Free Voltage (AC 100/ 220V, 50~60Hz)
Power Consumption: 48W
Temperature: 15~35?
Humidity: 35~70%

SECURITY

Physical Lock: Input Hopper & Ribbon (Option)
Station Itself: Kensington Lock (Option)

DIMENSIONS

Milimeter: 165 (W) x 390 (L) x 210 (H)
Inch: 6.5 (W) x 15.4 (L) x 8.3 (H)

WEIGHT

Kg/Lbs: 4.5 / 10

ENCODING OPTION

Magnetic: ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
Contactless: ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica

CERTIFICATIONS

Certifications: CB, CE, FCC, KC, CCC

Card Printer Supplies

Product Name	SKU	MSRP	Discount Price
IDP Smart-31 & Smart-51 YMCKO Full-color ribbon with cleaning roller - 250 cards/roll	SKU: 659366	MSRP: $91.00	Price: $76.00	Check to Add
IDP K Resin Black ribbon with cleaning roller - 1200 cards/roll	SKU: 659367	MSRP: $31.00	Price: $26.00	Check to Add
IDP IDP SMART-31 & SMART-51 Cleaning Roller Kit (10pcs)	SKU: 659005	MSRP: $60.00	Price: $50.00	Check to Add
Asure ID Express 7 Software - Digital Delivery	SKU: 086512	MSRP: $993.00	Price: $535.00	Check to Add
Microsoft LifeCam Studio ID Camera	SKU: Q2F-00013	MSRP: $249.00	Price: $105.00	Check to Add
CR80.30 (30 Mil) White PVC Cards - Qty. 500	SKU: 81754	MSRP: $57.50	Price: $45.00	Check to Add
3/8" (10 mm) Breakaway Lanyard with Nickel-Plated Steel Swivel Hook	SKU: 2137-50XX	MSRP: $60.00	Price: $41.67	Check to Add
3 in 1 Photo ID Card Table Top Slot Punch	SKU: 145078	MSRP: $69.00	Price: $55.00	Check to Add

Warranty

The IDP Smart-51S Single Sided ID Card Printer features a 3-year warranty.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.

Questions? Call us today at 800-897-7024 to speak with an ID expert.
