IDP Smart-70 Double Sided ID Card Printer
IDP Smart-70 Double Sided ID Card Printer

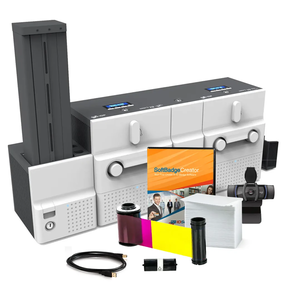

Looking for a Complete ID Card System?
Our photo ID systems include everything that you need to start printing your cards within minutes. Each system includes an ID card Printer, ID card software, a camera, PVC cards and a ribbon.
Yes, I want to see the IDP Smart-70 Double Sided ID Card System with 500 Card Input Hopper, Flipper and 80 card exit box

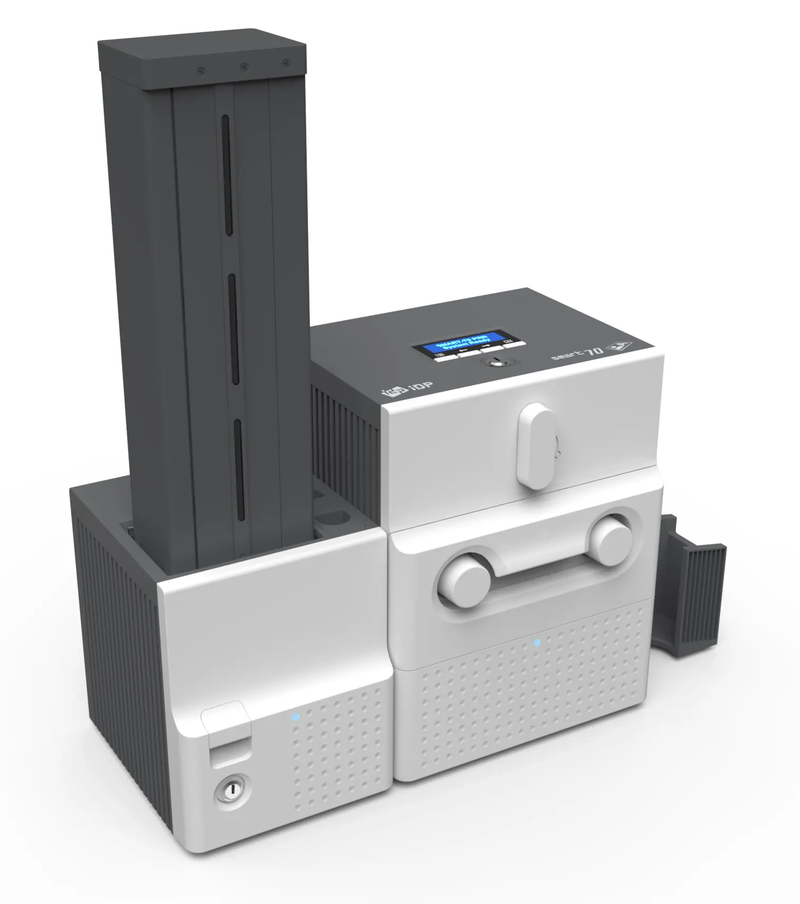

IDP Smart-70 Double Sided ID Card Printer Description
The SMART-70 Series the large capacity card printer from IDP is ideally suited to users who have large capacity needs, or for end-users who would like to secure their credential media in the securely locked printer. The SMART 70 Series offers a unique modular design that is easily upgraded by the end-user.
The easily upgradeable: the printer offers a simple no-tool upgrade strategy that any dealer or IT technician would be able to manage in minutes.
Saving maintenance time for replacing ribbon and laminating patch: 500 card ribbon and laminating patch are provided to match the capacity of the input hopper.
Each station (printer, hybrid flipper, laminator, in & out hoppers) connects with an alignment plate. Each station has its own power supply and communication cables are provided to connect each station and synchronize their operation.
IDP Smart-70 Double Sided ID Card Printer Specifications
Printing
- Print Mode: Single or Dual Sided
- Print Type: Direct Dye-Sublimation
- Print Area: Edge to Edge
- Resolutions: 300dpi
Card
- Card Feeding: Automatic
- Card Size: ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
- Card Thickness: 0.38mm (15mil) ~ 1.2mm (47mil)
- Card Type: PVC, Composite PVC, PET
Print Speed
- Monochrome: 3.6 sec./card (1,000 cards/hour)
- YMCKO: Max. 16 sec./card (225 cards/hour)
Capacity
- Input Hopper: 500 or 300 cards Cartridge Selectable
Sensor
- Residual Q'ty Sensor: Near Empty & Empty
- Detection Sensor: Cartridge Mount Status Detectable
System
- Memory: 64MB RAM
- Interface: 2 Line LCD / 4 Buttons / 1 LED Indicator
- Supported Platforms: MS Windows 7/ 8 /10, Mac OS, Linux
- Communication: USB, 2 USB Host, Ethernet
- Power Supply: Free voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption: 24V, 4A
- Temperature: 15~35?
- Humidity: 35~70%
Security
- Physical Lock: Card & Ribbon
- S/W: PC authentication, Password authentication
- Station Itself: Kensington Lock
Dimensions
- Milimeter: 410 (W) x 214 (L) x 548 (H)
- Inch: 16.2 (W) x 8.4 (L) x 21.6 (H)
Weight
- Approx. 10 Kg/22.1 lbs
Warranty
The IDP Smart-70 Double Sided ID Card Printer features a 36-month warranty.
Protect your investment with our extended warranty plans.
To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm
All our extended warranty plans include:
- Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
- Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
- Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.
