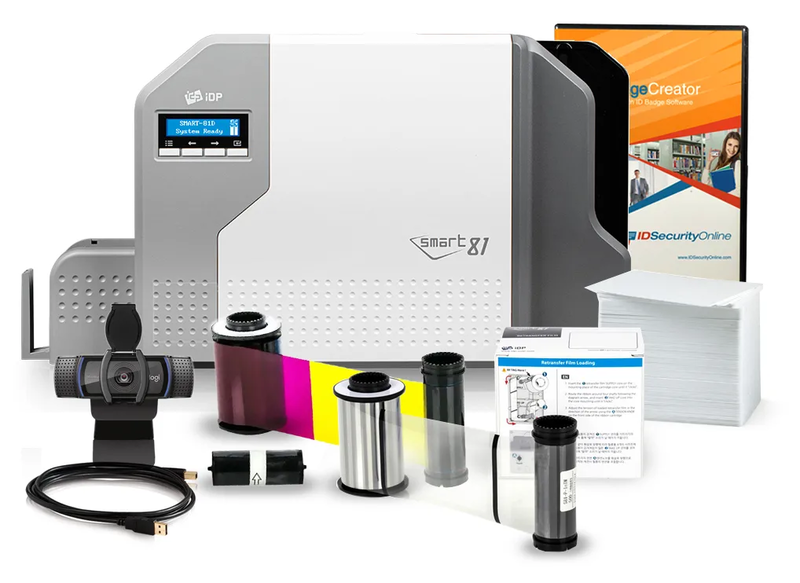

IDP Smart-81 Single Sided Retransfer ID Card System Description

The SMART-81S is a single-sided retransfer card printer designed for speed and reliability. It features IDP’s Rapid Retransfer Printing (RRP) technology, enabling instant readiness and high-quality card printing. The SMART-81S is perfect for applications requiring vibrant, sharp, full-bleed (edge-to-edge) printing on blank or technology cards.

Fastest First-Card-Out Speed: Powered by RRP technology, the printer achieves operational readiness in seconds.
High-Quality Printing: Produces vibrant and sharp edge-to-edge images.

High Capacity: Input hopper holds up to 200 cards; output hopper holds up to 100 cards (optional rear-side stacker available).
Robust Security: Includes physical and electronic security features, such as locking mechanisms and data encryption. User-Friendly
Operation: Equipped with a 2-line graphic LCD and four control buttons.

Saving maintenance time for replacing ribbon and laminating patch: 500 card ribbon and laminating patch are provided to match the capacity of the input hopper.

IDP Smart-81 Single Sided Retransfer ID Card System Specifications

Printing technology

Single-sided printing
Print Mode: Retransfer Dye-Sublimation / Resin Thermal
Resolutions: 300dpi

Card

Card Feeding: Automatic
Card Size: ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
Card Thickness: 0.76mm (30 mil) to 1.6mm (64 mil)
Card Type: PVC, Composite PVC, PET
Input hopper: 200 cards
Output hopper: 100 cards (optional rear-side stacker)

System

Compatible OS: Windows (2000 and later), Mac OS, Linux
Communication: USB as standard, Ethernet and Wi-Fi as options
Power Supply: Free voltage (AC 100/ 220V, 50~60Hz)
Temperature of operation: 15°C to 35°C (59°F to 95°F)
Humidity: 35~70%

Performance

YMCKK: Max. 25 sec/card (144 cards/hour)

Security

Password-protected administrator and user authentication
PC authentication: locks printer to a specific PC
Physical locks and tamper-proof design
Magnetic, contact, and contactless card encoding support

Dimensions (printer)

Millimeter (W x L x H): 460 x 224 x 310
Inch (W x L x H): 18.1 x 8.8 x 12.2

Weight (printer)

Approx. 25.13 lbs (11.4 kg)

Card Printer Supplies

Product Name	SKU	MSRP	Discount Price
IDP SMART-81 YMCK Color Ribbon & Retransfer Film Pack - 500 cards/roll	SKU: 653547	MSRP: $320.00	Price: $267.00	Check to Add
IDP Smart-81L Laminate Ribbon "Globe Flags" ThinFilm Overlay Laminate Film - 1000 Images	SKU: 900850	MSRP: $240.00	Price: $200.00	Check to Add
IDP Smart-81L Laminate Ribbon 1mil Patch Laminate Film - 500 patches/roll	SKU: 653629	MSRP: $385.00	Price: $175.00	Check to Add
Logitech C920S Pro HD Webcam	SKU: 960-001257	MSRP: $125.00	Price: $95.00	Check to Add
CR80.30 (30 Mil) White PVC Cards - Qty. 500	SKU: 81754	MSRP: $57.50	Price: $45.00	Check to Add
IDP SMART-81 & SMART-70 Cleaning Roller Kit (10pcs)	SKU: 659217	MSRP: $78.00	Price: $65.00	Check to Add
SoftBadge Creator Enterprise	SKU: SoftBadge E	MSRP: $1095.00	Price: $931.00	Check to Add
IDP SMART-81 Thermal Print Head Replacement, 300dpi	SKU: 653544	MSRP: $720.00	Price: $480.00	Check to Add

Warranty

The IDP Smart-81 Single Sided Retransfer ID Card System features a 36-month warranty.

Protect your investment with our extended warranty plans.

To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm

All our extended warranty plans include:

Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.

Questions? Call us today at 800-897-7024 to speak with an ID expert.
