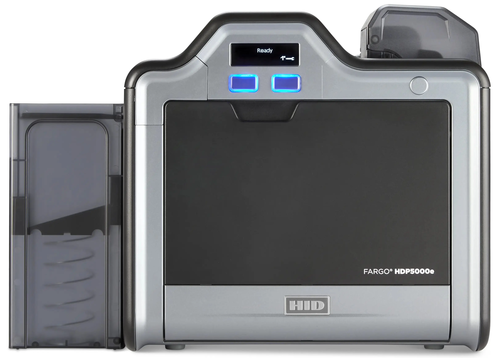

Fargo HDP5000e Single Sided Retransfer ID Card Printer

Years of Proven Technology Redefining ID Card Printing with Unmatched Reliability, Security, and Excellence

Built on seven generations of proven retransfer technology over the last 25 years, the HID® FARGO® HDP5000e ID card printer emerges as the next iteration of FARGO-branded, high definition printing solutions, redefining the standards of reliability, usability, security and printing excellence.

New, customer-inspired enhancements

Increased card throughput
• Higher definition display
• Advanced color management and more vivid color profile
• Updated electronics platform
• Easy-clean exterior
• Cable protection
• Multi-pass support*

Beyond its robust feature set, the HDP5000e simplifies and streamlines operation with its user-friendly SmartScreen™ interface — providing easy to-understand notifications and helpful, walk-through prompts for setup, maintenance and troubleshooting.

Versatile, Secure, and High-Quality ID Card Printing

The HID FARGO HDP5000e adapts to your ID card needs today and tomorrow with its modular design. Instantly scale production with options like dual-sided printing, encoding, lamination*, and a dual-input card hopper for managing multiple card types and higher volumes. Field-upgradable encoders enable inline printing and encoding in one step.

Using a refined process, the HDP5000e delivers vibrant, edge-to-edge images by printing a reverse image onto HDP Film, fused to the card surface. It prints up to 150 cards per hour (YMC with transfer), ensuring both speed and quality.

For enhanced security, the tamper-evident HDP film layer protects against counterfeiting—attempts to peel layers will destroy the image. This layer also shields cards from everyday wear and tear, ensuring long-lasting durability.

Modular Design for Flexibility and Ease of Printing

The HID FARGO HDP5000e features a modular design that allows for seamless upgrades and customization, delivering a solution perfectly suited to your business needs. With a variety of printing, encoding, and lamination configurations, it offers flexible options to meet specific requirements while remaining cost-effective. The system supports upgradable encoding options, enabling you to print and encode cards in a single pass for maximum efficiency. For enhanced security, an optional overlaminate layer provides tamper-proof protection, making cards highly resistant to forgery and ensuring long-lasting durability.

Print Method: HDP® Dye-Sublimation / Resin Thermal Transfer

Resolution: 300 dpi (11.8 dots/mm)

Colors: Up to 16.7 million / 256 shades per pixel

Display: Graphical OLED

Print Ribbon Options:

• Full-color with resin black (YMCK), 500 prints
• Full-color with two resin black panels (YMCKK), 500 prints
• Resin black (K), 3,000 prints*
• Additional ribbon options (YMC, YMCFK) coming soon

Print Speed (Batch Mode):

• Single-sided: Up to 27 seconds per card / 133 cards per hour (YMCK with transfer)
• Dual-sided: Up to 33 seconds per card / 109 cards per hour (YMCKK with transfer)
• With Lamination: Up to 33 seconds per card (single-sided YMCK) or 44 seconds per card (dual-sided YMCKK)

Accepted Standard Card Sizes: CR-80 (3.375” L x 2.125” W / 85.6 mm L x 54 mm W)

Accepted Card Thickness:

• Print only: .030” (30 mil) to .050” (50 mil) / .762 mm to 1.27 mm
• Print with lamination: .030” (30 mil) to .050” (50 mil)

Input/Output Card Capacity:

• Input: 100 cards (30 mil), expandable to 200 with optional hoppers
• Output: 200 cards (30 mil)

Encoding Options:

• ISO Magnetic Stripe (Tracks 1, 2, 3, dual high-/low-coercivity)
• Contactless Smart Card Encoder (HID iCLASS®, MIFARE®, DESFire®)
• ISO 7816 Contact Smart Card Encoder
• HID Prox (read-only)

Overlaminate Options:

• Thermal Transfer Overlaminate (.25 mil, 500 prints)
• PolyGuard® Overlaminate (1.0 mil / .6 mil, 250 prints)

Supported Card Types: ABS, laminated PVC, PET, PETG, proximity, smart, and mag stripe cards*

Software Drivers: Windows® 10/11, Server 2016/2019/2022

Interface: USB 2.0 (high speed) and Ethernet with internal print server

Warranty:

• Printer: Four years, including one year of free loaner support
• Printhead: Lifetime, unlimited card passes

Additional Features:The HDP5000e is available in a range of configurations, combining printing, encoding, and lamination options to create a solution tailored to your business needs. Its modular design allows you to easily upgrade capabilities—like encoding cards in a single pass or adding a tamper-proof overlaminate layer for enhanced security and durability.
