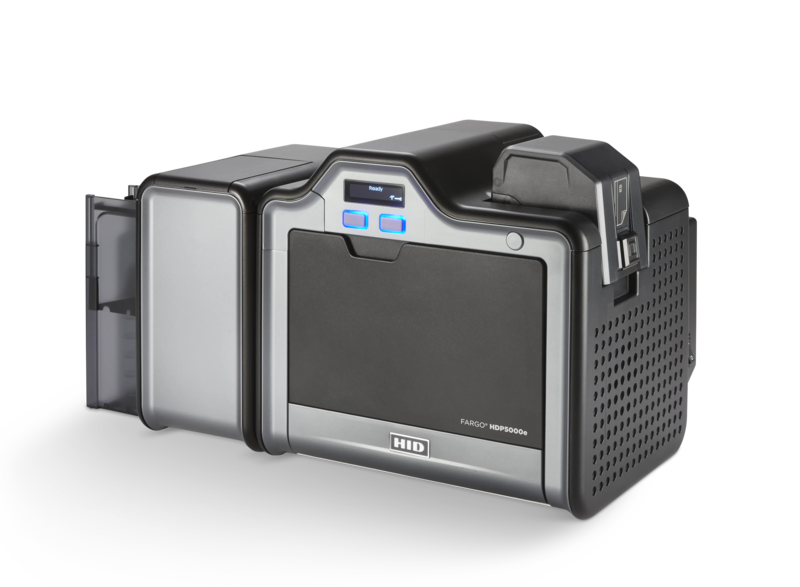

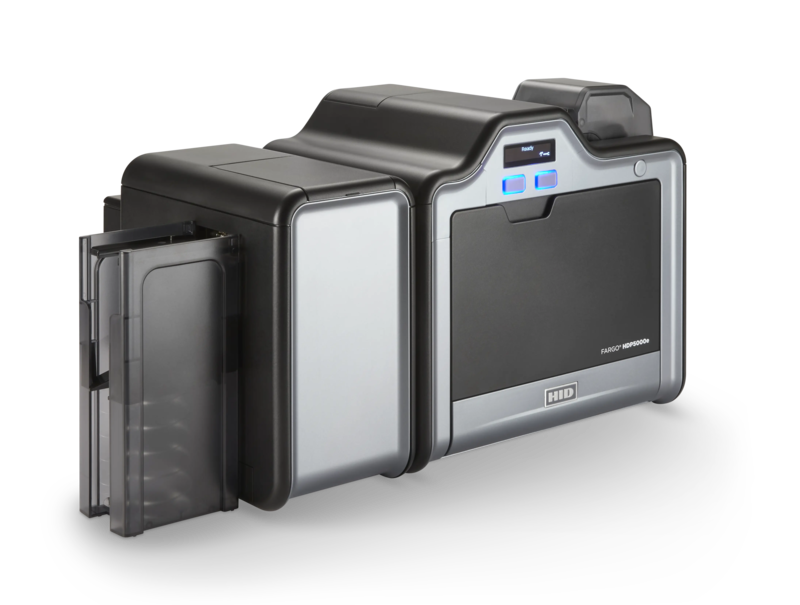

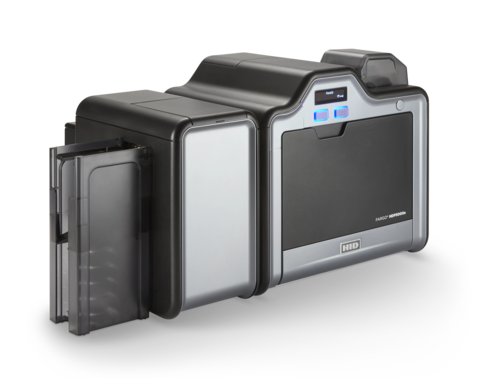

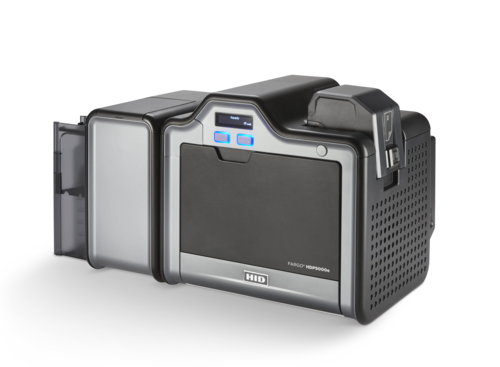

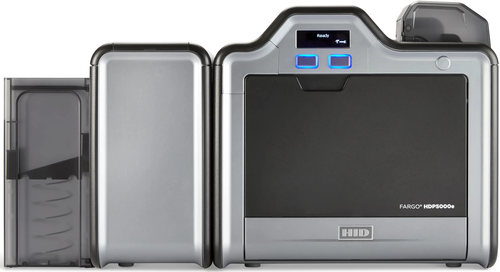

Fargo HDP5000e Dual Sided Retransfer ID Card Printer

Years of Proven Technology Redefining ID Card Printing with Unmatched Reliability, Security, and Excellence

Built on seven generations of proven retransfer technology over the last 25 years, the HID® FARGO® HDP5000e dual-sided ID card printer represents the pinnacle of high-definition printing solutions. With a focus on reliability, advanced security, and exceptional print quality, the HDP5000e sets a new benchmark for ID card printing.

Using reverse transfer printing technology, the HDP5000e creates vibrant, edge-to-edge images while delivering durability and precision, even on cards with smart chips or uneven surfaces.

New Enhancements

• Increased dual-sided card throughput for greater productivity
• Higher definition graphical OLED display for easier operation
• Improved color management for vivid and accurate color profiles
• Updated electronics platform for seamless performance
• Easy-clean exterior for simplified maintenance
• Cable protection for added durability
• Enhanced dual-pass and multi-pass support*

Beyond its robust features, the HDP5000e ensures ease of use with the SmartScreen™ interface, which provides clear notifications and intuitive prompts for setup, maintenance, and troubleshooting.

Versatile, Secure, and High-Quality ID Card Printing

The HID FARGO HDP5000e Dual-Sided Printer offers exceptional flexibility to meet the needs of growing businesses. Its ability to print dual-sided cards in a single pass at 300 dpi ensures efficient production of sharp, edge-to-edge images with high-definition quality. For added security, the optional overlaminate layer protects cards against tampering, counterfeiting, and everyday wear.

Thanks to its refined reverse transfer process, the HDP5000e delivers edge-to-edge images that are both sharp and durable. The system produces up to 109 dual-sided cards per hour (YMCKK), ensuring a balance of speed and quality for large-volume operations.

Field-upgradable encoding options allow for inline printing and encoding, streamlining card production while supporting contact, contactless, and magnetic stripe technologies.

Modular Design for Flexibility and Ease of Printing

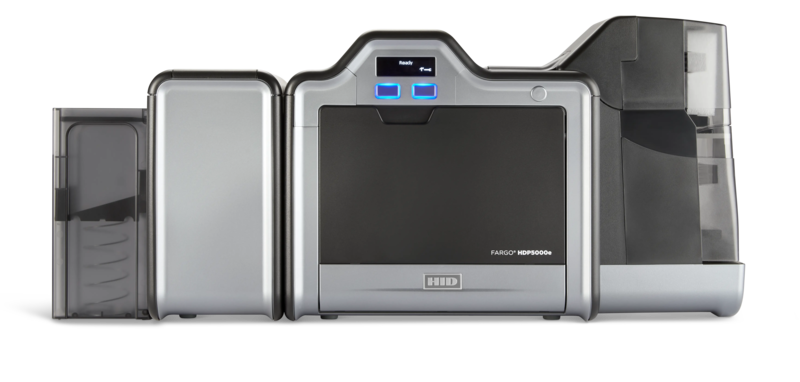

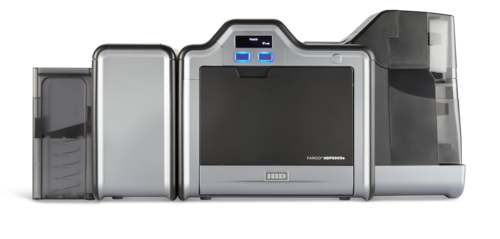

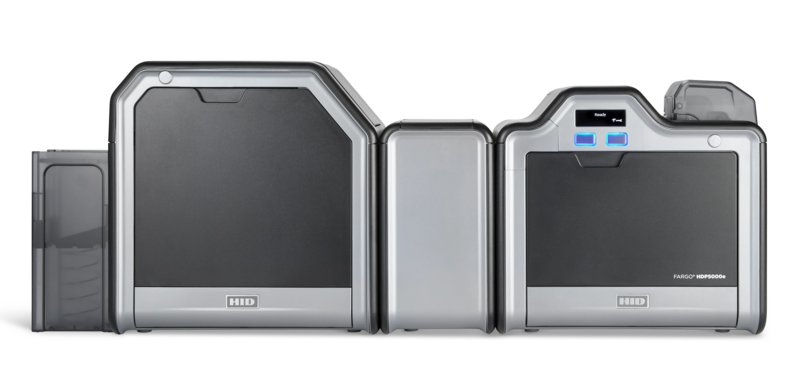

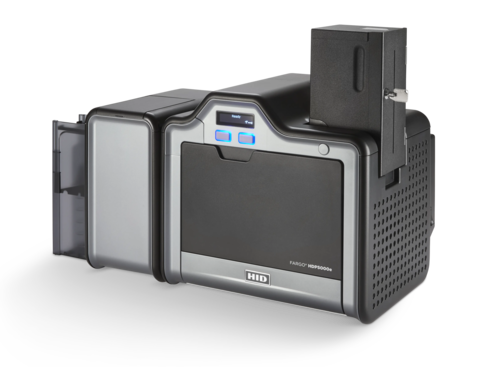

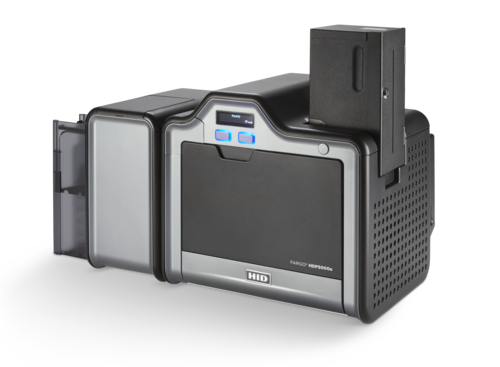

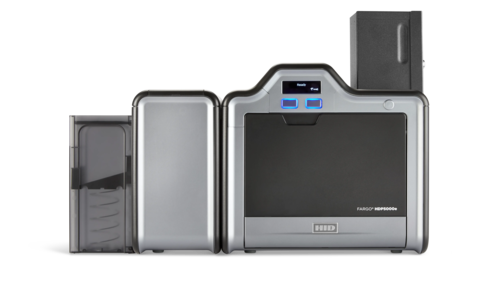

The HDP5000e’s modular design allows businesses to configure the printer according to their needs. Start with dual-sided printing and easily upgrade to include features such as encoding, lamination, or dual-input hoppers as your requirements evolve.

This adaptability ensures cost-efficiency without sacrificing performance. Whether you need enhanced security through tamper-evident overlaminate or the ability to manage high card volumes, the HDP5000e delivers a tailored solution that grows with your organization.

• Multi-pass support*: Refers to the printer's ability to handle cards that require multiple printing or encoding steps, ensuring consistent quality for complex designs.
• Dual-pass*: Describes the printer's ability to manage dual-sided lamination in separate, sequential passes to provide enhanced protection and durability.

Print Method: HDP® Dye-Sublimation / Resin Thermal Transfer

Resolution: 300 dpi (11.8 dots/mm)

Colors: Up to 16.7 million / 256 shades per pixel

Print Speeds (Batch Mode):

• Up to 27 seconds per card / 133 cards per hour (YMCK with transfer)
• Up to 33 seconds per card / 109 cards per hour (YMCKK with transfer)
• Up to 44 seconds per card / 82 cards per hour (YMCKK with transfer and dual-sided lamination)

Accepted Standard Card Sizes: CR-80 (3.375” L x 2.125” W / 85.6 mm L x 54 mm W)

Accepted Card Thickness: .030” (30 mil) to .050” (50 mil) / .762 mm to 1.27 mm

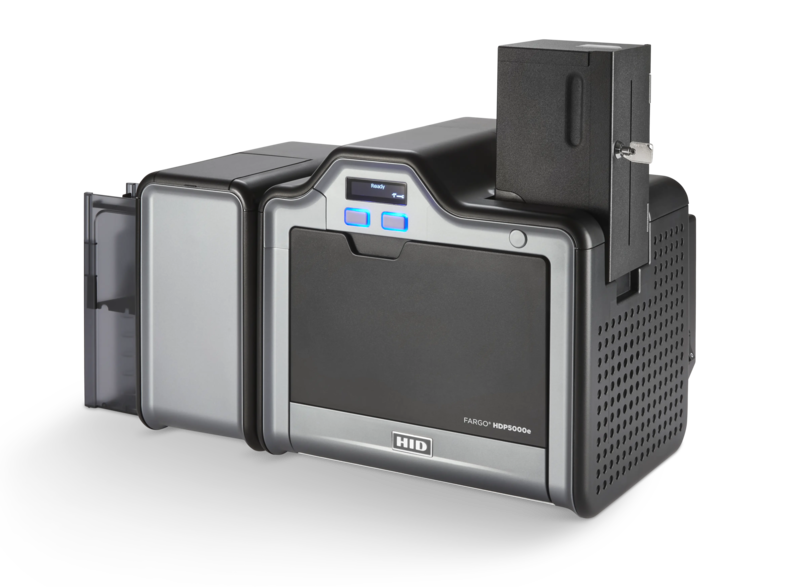

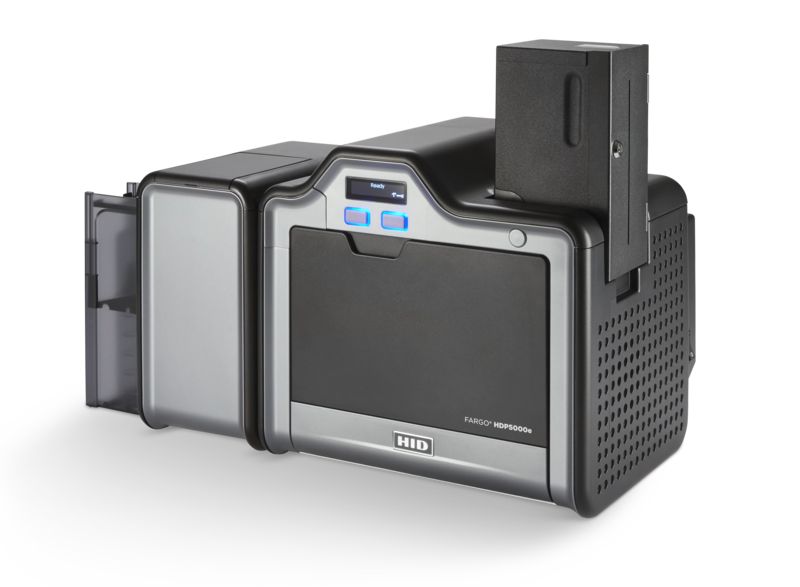

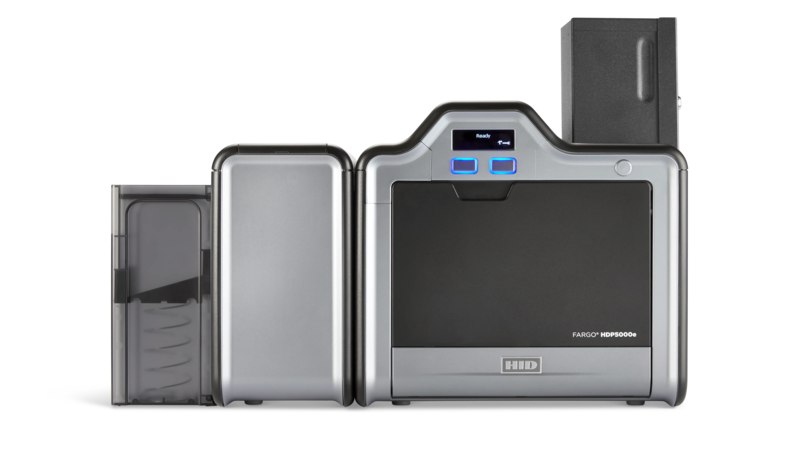

Input Card Cartridge Capacity: 200 cards (.030” / .762 mm)

Output Hopper Card Capacity: 200 cards (.030” / .762 mm)

Software Drivers:

• Windows® 10/11, Server 2016/2019/2022

Print Area: Over-the-edge on CR-80 cards

Warranty:

• Printer - Four years, including one year of free loaner support (U.S. only)
• Printhead - Lifetime, unlimited card passes

Encoding Options:

• ISO Magnetic Stripe Encoding, dual high- and low-coercivity, Tracks 1, 2, and 3
• Contactless Smart Card Encoder (HID iCLASS®, MIFARE®, DESFire®)
• ISO 7816 Contact Smart Card Encoder
• Prox Card Reader (HID read-only)

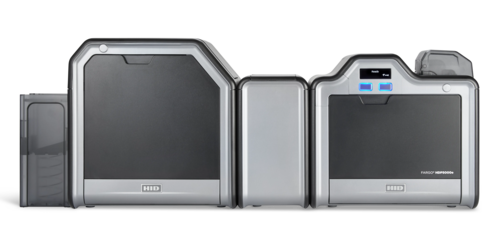

Overlaminate Options:

• Thermal Transfer Overlaminate (.25 mil, 500 prints)
• PolyGuard® Overlaminate (1.0 mil / 0.6 mil, 250 prints)

Included Software: FARGO Workbench™ Diagnostic Utility with Color Assist spot-color matching
