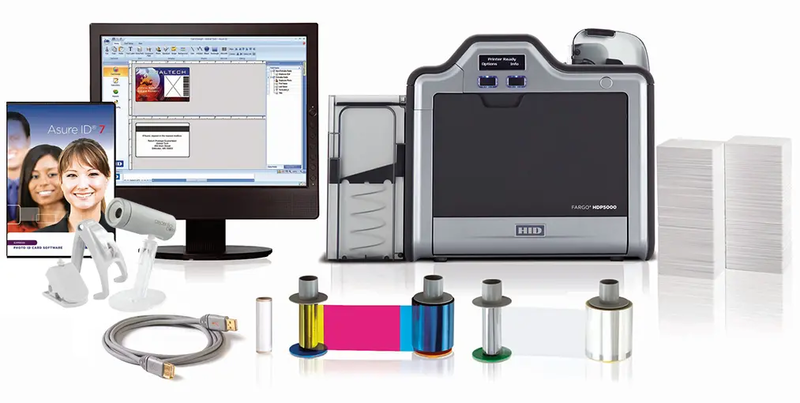

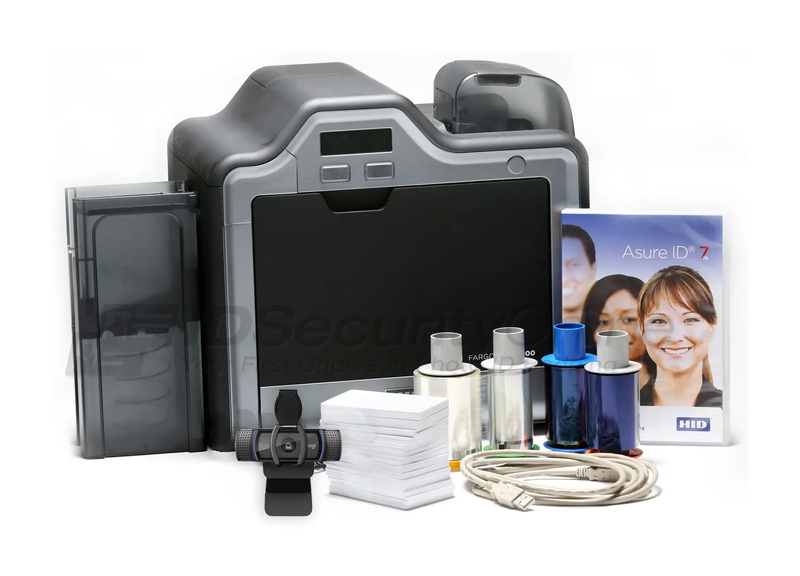

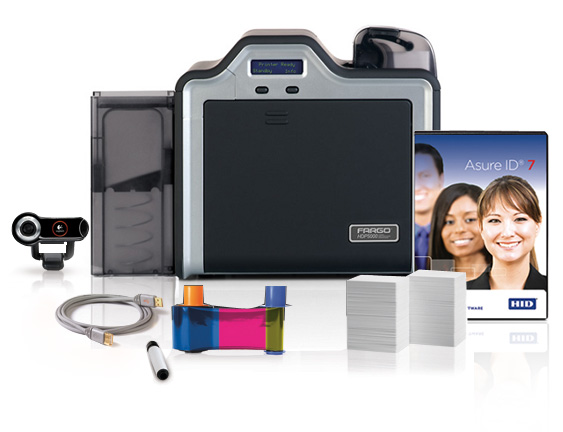

Fargo HDP5000 Single Sided ID Card System

Capture photo ID pictures, import them to your card design with your Asure ID Solo software and print high-quality badges with your Fargo HDP5000 Single- Sided ID Card Printer.

About the Fargo HDP5000 Single- Sided ID Card Printer:

The Fargo HDP5000 Single-Sided ID Card Printer is the ideal solution to print vibrant, high-definition cards. The enhanced HDP5000 produces ID cards with the highest image quality available. By printing a reverse image on the underside of HDP Film, then fusing the film to the card surface, the HDP5000 creates superb image quality. The HDP5000 can print up to the edge of smart chip contacts, and over the edge of the card.

The HDP5000 is exceptionally reliable, which means less printer downtime. The printhead never comes in contact with card surfaces or debris so it never gets damaged in the printing process. In fact, it carries a lifetime warranty! The enhanced Fargo HDP5000 ID Card Printer comes with an industry-leading 3-year warranty including one year of free printer loaner support!

Cards resist wear and tear by putting a durable layer of HDP Film between the card image and the outside world. They’re also tamper-evident — if a counterfeiter tries to peel apart the layers, the image essentially destroys itself.

Expand or reduce production instantly with add-on dual-sided printing, encoding and lamination modules. For greater system capacity, an optional dual card input hopper lets you easily manage multiple card types and higher card volumes.

About Asure ID Solo software:

The Asure ID Solo software is a perfect solution for small businesses looking to create affordable yet professional looking ID cards. Easy-to-use, your ID cards will look just the way you want them to!

The Fargo HDP5000 Single-Sided ID Card System is ideal for:

• Corporate IDs
• Government IDs
• Student IDs
• Loyalty cards
• Membership cards
• Healthcare IDs

Field upgradable options:

• Dual card input hopper module with 200 card total input hopper capacity
• 200-card input hopper cartridge with lock
• Dual-side printing module
• Single-side or dual-sided simultaneous lamination modules
• Magnetic stripe encoder
• Contact smart card encoder (ISO 7816)
• Contactless smart card encoder – 13.56 MHz technology such as HID iCLASS® and MIFARE™ DESFire and 125 kHz HID Prox (read-only)

Resolution: 300 dpi (11.8 dots/mm)

Colors: Up to 16.7 million / 256 shades per pixel

Print Ribbon Options:

• Full-color, YMC, 750 prints
• Full-color with resin black, YMCK, 500 prints
• Full-color with two resin black panels, YMCKK, 500 prints
• Full-color with resin black and heat seal panel for difficult-to-print surfaces, YMCKH, 500 prints
• Full-color with resin black and inhibit panel for signature or other non-printing areas, YMCKI, 500 prints
• Full-color with fluorescing and resin black, YMCFK, 500 prints
• Resin black, K, 3000 prints

HDP Film Options:

Print Speed:

• 26 seconds per card / 138 cards per hour (YMC with transfer)
• 32 seconds per card / 113 cards per hour (YMCK with transfer)
• 47 seconds per card / 77 cards per hour (YMCKK with transfer)

CR-80 (3.370”L x 2.125”W / 85.6mmL x 54mmW)

Accepted Card Thickness

Print only: .030” (30 mil) to .050” (50 mil) / .762mm to 1.27mm

Input Card Cartridge Capacity: 100 cards (.030” / .762mm)

Card Cleaning: Replaceable cleaning roller (included with each print ribbon)

Memory: 16mb ram

Display: User friendly, SmartScreenTM LCD Control Panel

Software Drivers:

Windows® 2000 / XP / Server 2003 / Vista (32 bit); Mac OS X v10.4 / v10.5; and Linux

Interface:

USB 2.0 (high speed) and Ethernet with internal print server

System Requirements:

x86based PC or compatible, Windows 2000, Windows XP, Windows 2003, or Windows Vista, 500MHz computer with 256MB of RAM or higher, 500MB free hard disk space or higher

Supply Voltage:100-240 VAC, 3.3 A

Humidity: 20 - 80% non-condensing

Dimensions

HDP5000: 11.50”H x 12.25”W x 9.25”D / 292mmH x 313mmW x 235mmD

Weight: 16 lbs. / 7.3 kg

Agency Listing:

• Safety: UL 60950, CSA C2.2 No 60950, CB report (EN 60950), and CE mark

• EMC:FCC Part15 Class A, EN 55022: 1998 Class A, CRC c1374, EN 61000-3-2:2000,EN 61000-3-2: 1995, EN 55024: 1998, CE mark, and CCC mark

Software: Fargo Workbench Diagnostic Utility

Warranty:

Printer – Two years including one year of free printer loaner support

Printhead – Lifetime with unlimited pass.
