Description

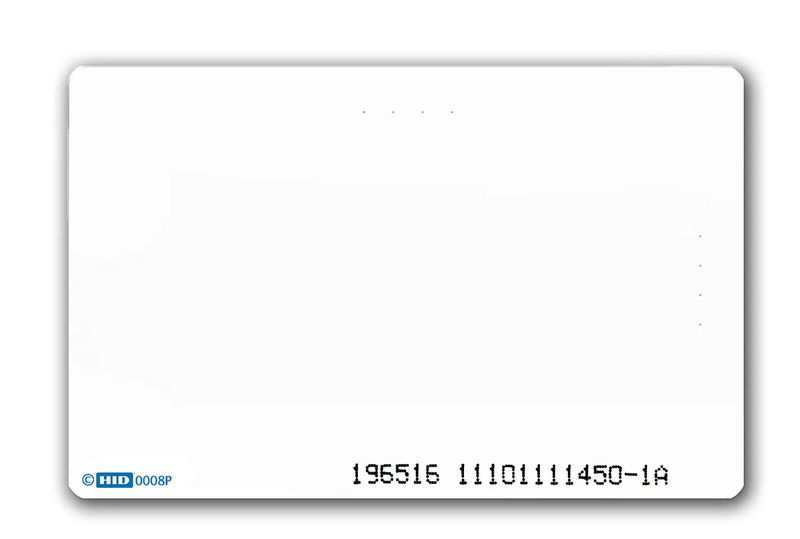

The HID FPISO FlexISO Cards are ISO 7810 compliant with a nominal thickness of 0.03 inches (0.76 mm). The HID FPISO FlexISO Cards contain multiple ID technologies and optional magnetic stripe in a single credential.
You can print directly over the FlexISO's front surface by using your dye-sublimation printer. Barcodes can also be imaged onto the card for systems tracking, time and attendance or job costing.
The HID FPISO FlexISO Cards feature FlexSecur technology, which provides an added level of access system security through a verification process at the reader. FlexSecur screens out unauthorized cards prior to sending card data to the host system.
Key Features:
- True credit card Thickness
- Graphics quality Surface on both sides.
- Optional magnetic stripe for use with other systems, such as cafeteria vending, copy machines and fuel dispensing.
- Compatible with all Indala readers, and can be easily encoded with Indala's ProxSmith Programmer and toolkit.
- The passive, no-battery design allows for an infinite number of reads, and is warranted for life against defects in materials and workmanship.
- PVC card surface is optimized for dye sublimation printing.
- Can be combined with a magnetic stripe, barcode, a multitude of smart chips, and MIFARE®.
Specifications
Dimensions
3.38”H x 2.12”W x 0.03”T (86 mm x 54 mm x .73 mm) nominal
Weight
- 0.20oz (6g)
- Typical Maximum Read Range
- Linear/Arch/Curve/Wave - Slim/Wall switch: Up to 5” (12 cm)
- Linear – Classic: Up to 5” (12 cm)
- Arch/Wave - Mid-Range: Up to 12” (30 cm)
- Arch - Long-Range: Up to 26” (66 cm)
Temperature
32° F to 122° F (0° C to 50° C)
Inkjet Marking
Includes sales order number and ID number matching internal ID.
Custom Graphics
Available on FlexISO with customer-supplied artwork.
Slot Punch
Optional vertical or horizontal (locations indicated on card)
Coding
Wiegand, ABA Track II Magnetic Stripe, others available (exact coding standard, with no gaps or over-runs)
Programming
Factory or field programmable via Indala ProxSmith® Programmer and Toolkit
Warranty
Lifetime
