Evolis Zenius Single Sided ID Card Printer - Fire Red
Evolis Zenius Single Sided ID Card Printer - Fire Red

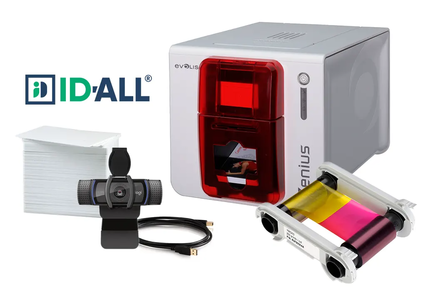

Looking for a Complete ID Card System?
Our photo ID systems include everything that you need to start printing your cards within minutes. Each system includes an ID card Printer, ID card software, a camera, PVC cards and a ribbon.
Yes, I want to see the Evolis Zenius Single Sided Photo ID System - Fire Red
Evolis Zenius Single Sided ID Card Printer - Fire Red Description
Zenius is the one-stop solution to print high-quality single-sided cards, in monochrome or color, and encode technology cards, singly or in runs, for a variety of applications:
- Employee badges
- Access control badges
- Payment cards
- Transportation passes, and more.
- Evolis Premium Suite®, software, at the core of all new Evolis printers. This software architecture supplies the Print Center, a printing and configuration system that monitors all communications between the printer and the user.
The printer's operation can be managed entirely right from the user s interface and through pop-up notifications on the printing status, ribbon availability and maintenance tasks. This Printer Manager also offers direct access to the Evolis Web-based Support Center, available on a 24/7 basis.
- The Evolis High Trust® range of consumables is specifically designed to deliver premium graphic performances and ease of use. Installing the ribbon cassette is a simple one-step process and thanks to a chip, Zenius instantly identifies the ribbon type and configures all settings accordingly.
Evolis Zenius Single Sided ID Card Printer - Fire Red Specifications
General printer specifications
- Single-sided printing module, edge-to-edge printing
- Color-dye sublimation and monochrome thermal transfer
- 300 dpi print head (11.8 dots/mm)
- 16 MB of RAM
Printing performances
- Color: from 120 to 150 cards per hour
- Monochrome: from 400 to 500 cards per hour
Card management and specifications
- Choice of automated or manual feeding
Evolis High Trust® ribbons®
Maximize the quality and durability of printed cards, the lifespan of your print head and the overall reliability of your printer!
- Automatic detection and setup
- Ribbon embedded in a cassette for ease of use
- Ribbon saver feature for monochrome printing
Display
- LEDs
- Graphic notifications from the printer (Depending on your Windows version): Empty feeder, cleaning, ”approaching end-of-ribbon” and “end-of-ribbon” warnings
Software
Supplied with the Evolis Premium Suite® for Windows:
- Printer driver
- Evolis Print Center for printer management and setup
- Evolis Printer Manager for two-way notifications (Requires .net 4.0 client profile)
- Supports Windows XP SP2 or later; Vista 32/64, W7 32/64 (For versions prior to Windows XP-SP2, please contact Evolis Services)
Supplied with the eMedia CS Card Designer (30-day free trial to be downloaded from Mediasoft’s website)
Other OS: Mac and Linux: upon request
Warranty
- 2 years (printer and print head)
Output tray capacity - 20 cards (0.76 mm — 30 mil)
Card thickness - 0.25 to 0.76 mm (10 to 30 mil), calibration via the gauge
Types of cards - all PVC , Composite PVC, PET, ABS* and special varnish* cards
Card format - ISO CR-80 — ISO 7810 (53.98 mm x 85.60 mm — 3.375” x 2.125”)
*Under specific conditions
Ribbon capacity:
- YMCKO
- 100 cards/roll
- KO
- 300 cards/roll
Hologram ribbon - 400 cards/roll
Interfaces
- USB 1.1 (compatible 2.0)
- Ethernet available as an option
(H x L x W) - 195 mm (7.68”) x 205 mm (8.07") x 310 mm (12.2”)
Weight
3.3 kg (7.3 lbs)
When operating - 46dB (A)
In sleep mode - Background noise only<
Safety
- Support for Kensington® lock
- Data encryption for magnetic encoding (for the ‘Expert’ version or above)
- Printer
- CD-ROM with the printer driver and user manual
- Cleaning kit
- USB cable
- Power supply and cords
Available colors
- Fire Red or Grey Brown
- Ethernet TCP-IP (for the ‘Expert’ version or above)
- Encoding options, than can be combined. Upgrade can be carried out onsite, by adding new modules (for the ‘Expert’ version or above):
- Magnetic stripe encoder, smart card contact station,smart card encoder and contactless smart card encoder. Other encoders available upon request.
Eco-friendly design, certifications and statement of compliance
- Sleep mode and reduced energy consumption
- CE, FCC, IEC, VCCI, CCC, KC
- ErP 2009/125/CE, ENERGY STAR, RoHS
Power supply - 100—240 V AC, 50—60 Hz, 1.8 A
Printer - 24 V DC, 3 A
Environment:
Min/max operating temperature: 15° / 30°C (59° / 86°F)
Humidity: 20% to 65% non-condensing Min/max storage temperature: —5° / +70°C (23° / 158°F)
Storage humidity: 20 to 70% non-condensing
Operating ventilation: Open air<
Resident fonts
- Arial 100, Arial Bold 100
- Bar code: Code 39, code 128, EAN 13, Interleaved 2 of 5
Warranty
The Evolis Zenius Single Sided ID Card Printer - Fire Red features a 2-year warranty on printer and printhead.
Protect your investment with our extended warranty plans.
To order an extended warranty please call 800-897-7024 Monday thru Friday from 8:30 am to 5pm
All our extended warranty plans include:
- Toll-free technical support
Call 800-897-7024 Monday thru Friday from 8:30 am to 5pm or chat with us.
- Parts and labor
All parts and labor are included. Printheads are not covered after the first year.
- Optional printer loaner
We will send you a loaner while we service your printer so you can keep printing your badges.
