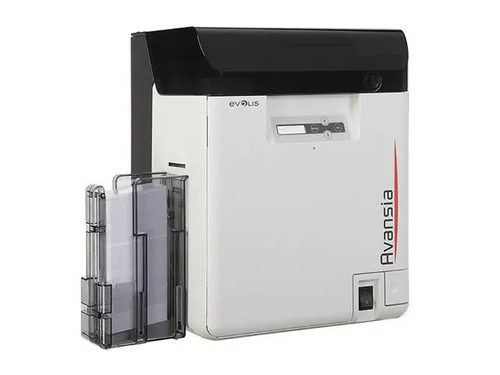

Evolis Avansia Retransfer Dual Sided ID Card Printer

If you need a highly capable and robust system to print top quality cards quickly, take a look at the Evolis Avansia Dual-Sided ID Card Printer. Printing more than 140 single-sided color cards per hour, the Evolis Avansia Dual-Sided ID Card Printer is highly productive and ideal for ID cards in medium and large quantities.

Flawless printing

With a 600 dpi resolution, the Evolis Avansia Dual-Sided ID Card Printer renders images and text perfectly. Micro text and watermarks are printed in high definition.

The Avansia Dual-Sided ID Card Printer guarantees your edges will print perfectly since the retransfer film fully covers the card.

Media compatibility

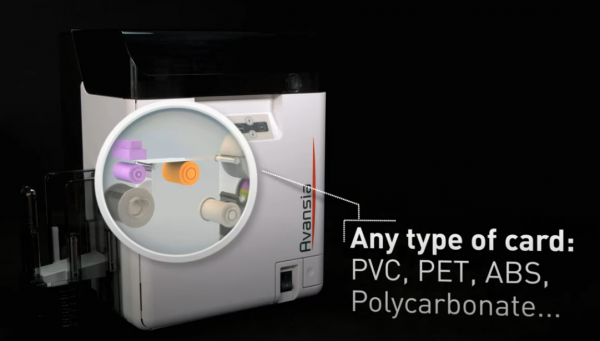

Thanks to Retransfer technology, the Evolis Avansia Dual-Sided ID Card Printer can print on all types of cards, from PVC and PET to polycarbonate and ABS. This makes the Avansia Dual-Sided ID Card Printer perfect for cards with uneven surfaces like smart contact and contactless cards.

Also, the standard built-in card flattener delivers perfect results.

Increased productivity

The Evolis Avansia Dual-Sided ID Card Printer prints more than 140 single-sided color cards per hour, making you exceptionally productive. You can print your ID cards with no interruptions thanks to a high capacity feed tray and output tray that holds 250 cards each.

In addition, Evolis has high capacity consumables for the Avansia that cover 500 prints per roll.

Convenience & security

You can store up to 250 blank cards in a removable card case inside the Evolis Avansia Dual-Sided ID Card Printer. And for your convenience when operating, a front control panel has 4 keys, a 2-line LCD display, and a status indicator.

For security, the Evolis Avansia Dual-Sided ID Card Printer comes with an electronic key that allows ribbon recognition, secures the use of the printer, and monitors consumables status.

Multiple encoding options

Depending on your specific needs, the Evolis Avansia Dual-Sided ID Card Printer can be configured for all types of data encoding options, including magnetic stripe and contact and contactless smart cards.

Robust printer for high security card issuance

The Evolis Avansia Dual-Sided ID Card Printer is the ideal printer for a variety of applications, including:

• Corporate ID cards
• Secure access badges
• Student cards
• Payment cards
• Loyalty cards / gift cards
• National ID cards
• Driver's licenses

General features

• Reverse transfer printing, using color dye sublimation and resin monochrome retransfer
• Dual-sided printing (standard)
• Over the edge printing
• Using color dye sublimation and resin monochrome retransfer
• 600 dpi print head (23.6 dots/mm)
• Bitmap: 24 bits, 16 million colors
• Printout: Y/M/C 256 level
• 64 MB of memory (RAM)

Printing performances

• Full card:
• Single side (YMCK): 25 s/card - 144 cards/hour
•  Dual side (YMCKK): 37.5 s/card - 96 cards/hour

Additional encoding modules

• Available modules:
• Magnetic stripe encoder ISO 7811
• Dual contact and contactless encoder
• Encoder connectivity: internal USB hub, 1 port available
• Encoding options can be combined
• Factory installed or installed on site for contact and contactless encoders

Interfaces

• USB (1.0, 1.1, 2.0, 3.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Card management and specifications

• Card feeder: 250 cards (0.76 mm — 30 mil)
• Card output hopper: 250 cards (0.76 mm — 30 mil)
• Reject tray capacity: 30 cards (0.76 mm — 30 mil)
• Card thickness: 0.76 mm (30 mil), manual adjustment
• Card types:
• PVC cards
• Composite PVC cards
• PET-F cards
• PET-G cards
• Polycarbonate cards (PC)
• ABS cards
• Card format: ISO CR80 - ISO 7810 (53.98 x 85.60 mm — 3.370” x 2.125”)

Safety

• RFID locking key
• Support forsecurity lock (Kensington® type)
• Centralizedlocking system to secure access to blank cards, ribbon and film (optional)
• IPSec encryptednetworking security

Evolis High Trust® Ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

• Ribbon capacity:
• Clear transfer film: 500 prints/roll
• Holographic transfer film: 400 prints/roll
• YMCK: 500 prints/roll
• YMCKK: 400 prints/roll
• YMCKI ribbon (for smart cards, magnetic stripes and signature panels): 400 prints/roll
• YMCKH ribbon (for non PVC cards): 400 prints/roll
• YMCFK ribbon (F = UV ink): 400 prints/roll

Software

• Compatible with Windows (32/64 bits): XP SP3, Vista, W7, W8
• Delivered with cardPresso XXS for designing and editing badges
• Internal database (unlimited records)
• Windows (from XP onwards)

Display

• Two-line LCD display and LED status indicator
• Printer graphical notifications: empty input hopper, empty/low level ribbon alert...

Certifications and statement of compliance

• RoHS
• CE, FCC, UL, IEC

Size and weight

• Dimensions (H x W x D): 436 x 340 x 297 mm (17.16” x 13.38” x 11.69”)
• Weight: 20 kg (44.09 lbs)

Warranty

• 3 years for printer, lifetime warranty on print head
