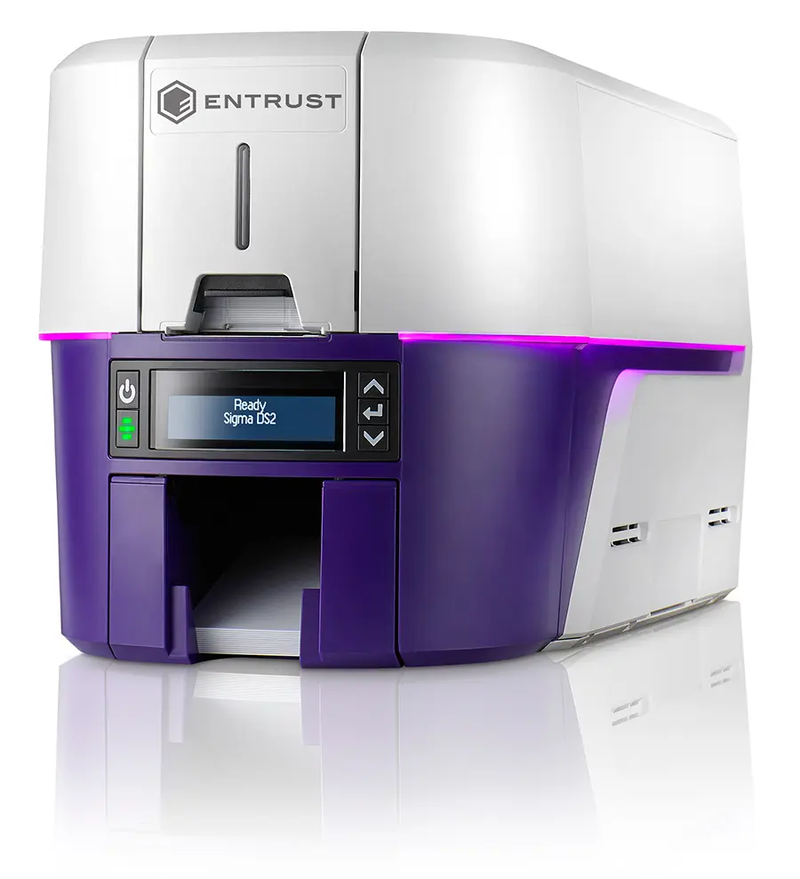

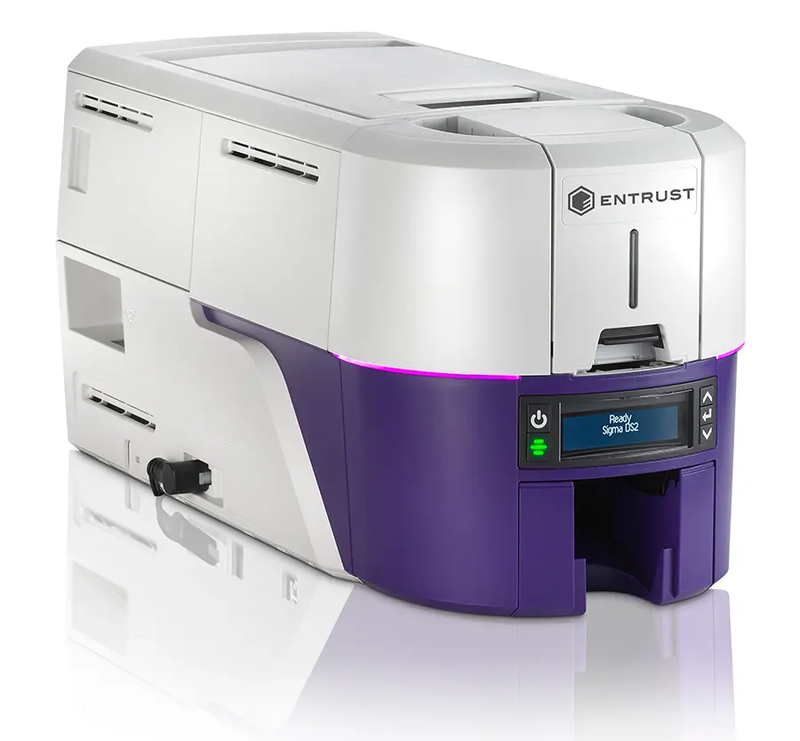

Entrust Sigma DS2 Dual Sided ID Card Printer

Sigma: The next generation of direct-to-card printing

Entrust Sigma ID Card Printers are specifically designed for today’s cloud environments and give you the ability to easily issue secure identitie.

The world’s most user-friendly ID card printer

• Intuitive printer dashboard lets yousee printer status, order supplies, check cleaning status, update
  firmware, or contact help – all from your mobile device
• Seamless self-service lets you access how-to videos and other helpful resources by simply scanning QR code on the LCD display
• Variable LED light ring lets you incorporate brand colors or other customization into your ambient environment
• Pre-loaded ribbon cassettes make switching ribbons easy

Unmatched security

• Secure boot protects system from malware or virus on boot-up
• Trusted Platform Module (TPM) manages the printer’s own TLS/SSL certificates and keys
• Connection and data sent between software and printer is encrypted
• Customer data is encrypted and is not stored in the printer after printing is complete
• Luster printing and other security features added to cards protect from tampering and counterfeiting

Flexibility and scalability built for the future

• Issuance capabilities include physical cards and digital mobile flashpass
• Choose on-premises or cloud-hosted deployment
• Expand your ID Program as your needs change by adding smart card capabilities, wi-fi connectivity,
  and more
• Print anytime, anywhere with your mobile device (iOS, Android, Windows)

• Print technology Dye sublimation
• Print capabilities Single or dual-sided
• Print resolution 300 dots per inch (dpi) (300 X 600, 300 X 1200)
• Print speed Single-sided color ribbon: up to 225 cards per hour (cph), Double-sided color ribbon: Up to 140 cards per hour (cph)
• Card capacity Input hopper: 125 cards, Output hopper: 25 cards
• Card sizes Thickness: 0.010 inches to 0.040 inches (0.25mm - 1.016mm), Dimension: ID-1, CR-79
• Operating environment Temperature: 60°F to 95°F (15°C to 35°C), Humidity: 20-80% RH – non condensing
• Physical dimensions L 17.4 in x W 8.9 in x H 9 in / 44.2 cm x 22.6 cm x 22.9 cm
• Weight 11.3 lbs (5.49 kg); will vary with options
• Connectivity USB and Ethernet
• Warranty 36 months
