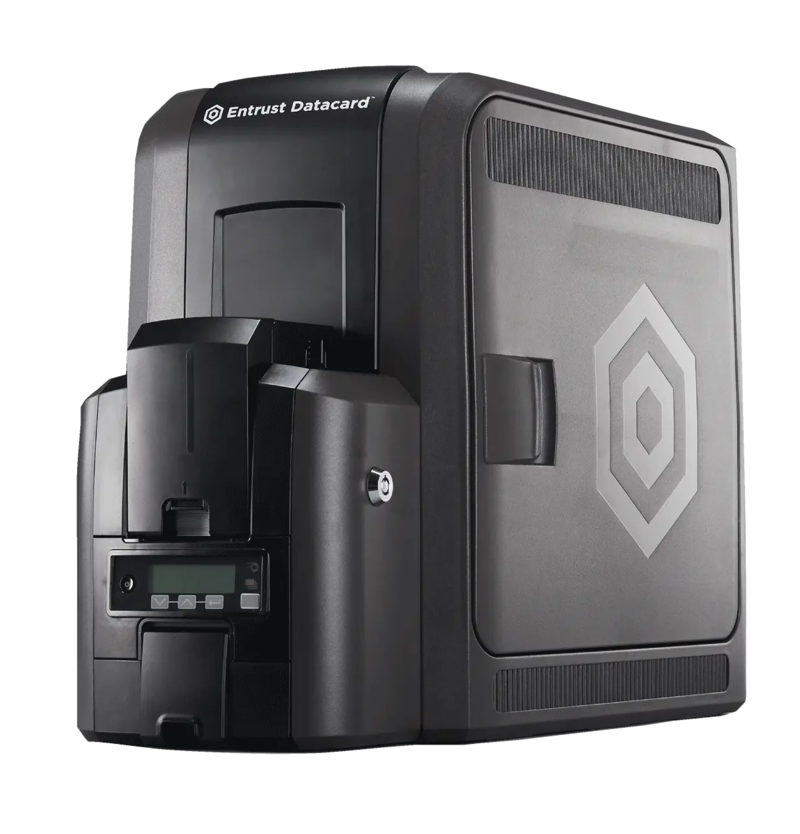

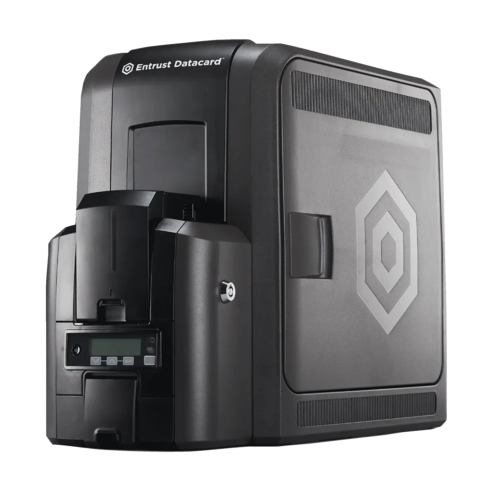

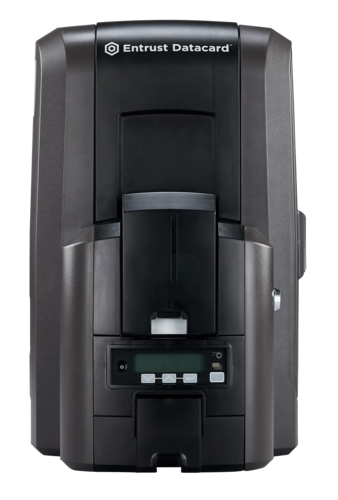

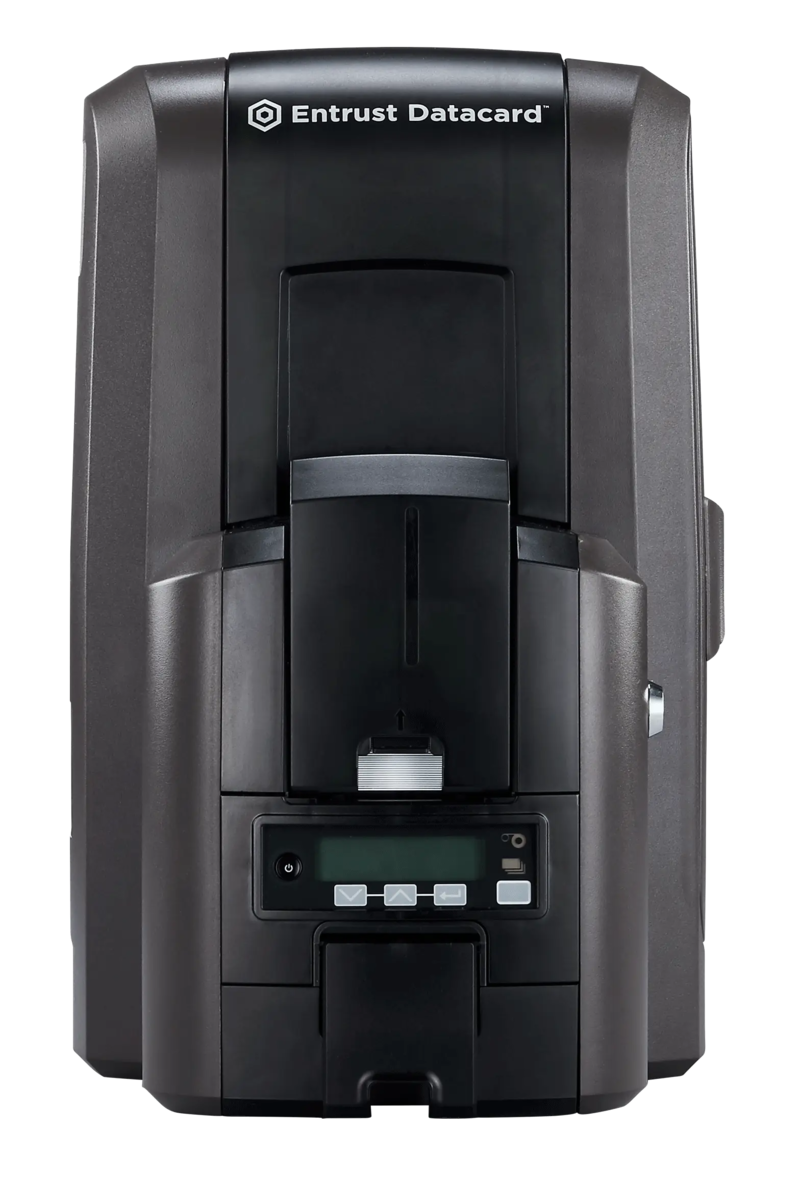

Entrust CR805 Dual Sided Retransfer ID Card Printer

Designed for Possibilities

The Entrust Datacard CR805 card printer gives customers a complete, on-demand card printing solution with stunning color, card material flexibility, security features and durability they need to create virtually any type of card for their customers, citizens, and employees.

A stunning, high-end look for every card design. Create cards that stand out from the crowd — pigment ink provides photo-quality imagery, stunning resolution, and extreme precision. Show off your brand to the world with brilliant, eye-catching card designs, and print lifelike skin tones for more accurate photo representation. The versatility of the CR805 allows you to print everything from corporate badges and school IDs to driver’s licenses and other high assurance IDs.

Improve the security of schools, airports, and other key government facilities. With the CR805 card printer, you get images that last longer so that you can more accurately authenticate each cardholder. Additional printer security features include:

• Optional locks to help safeguard against unauthorized printer use
• TPM module included in every printer. Utilize RMM to insert, manage and remove user-specific certificates and keys in a secure location
• Secure boot prevents system startup at any indication of malware

Issue more durable cards, and save on replacement costs. Pigment ink provides longer lasting images, due to its natural resistance to UV fading and the effects of plasticizers. Plus, enhance the durability of your card with the CR805 card printer by adding an additional layer of retransfer film to the card. Even greater security and durability features — like tactile impressions — are available with the addition of the optional lamination module.

Use card substrates that work for you. With retransfer printing, you can print on the card material that meets your needs and budget. From PVC to PVC composite, PC, or PET card types, the CR805 handles it all with ease.

Print-on-demand. Print exactly the design you need on-demand, eliminating the need for pre-printed card stock.

Print technology: Retransfer pigment ink

Print capabilities: Dual-sided, over-the-edge printing

Print resolution: 600 dots per inch (dpi)

Print speed:

• Full color printing
• Single-sided (CMYKP) – up to 100 cards per hour (cph)
• Double-sided (CMYKP-KP) – up to 66 cards per hour (cph)

Color modes:

• True Color (ICC) – prints color as close as possible to image as defined in the card design
• Legacy SR/CR – Close match to the CR500 Instant Issuance System
• Vivid – printer colors with higher saturation and contrast

Card capacity:

• Input hopper – up to 125 cards
• Output hopper – up to 25 cards (Optional 125 card)
• Card input size – 0.030 inches to 0.040 inches (0.76 mm to 10.01mm)

Operating environment: 60°F - 95°F (15°C - 35°C)

Physical dimensions:

• L 21.4 in. x W 10.1 in. x H 15.6 in.
• L54.34cmxW25.53cmxH39.68cm

Weight: 28 lb. (12.7 kg); with options will vary

Connectivity: USB and Ethernet

Warranties:

• Printer: 36 month standard warranty
• Printhead: Limited lifetime warranty
