Description
General Description: This color ribbon kit contains three items; all are compatible with several Datacard® card printers (see below):

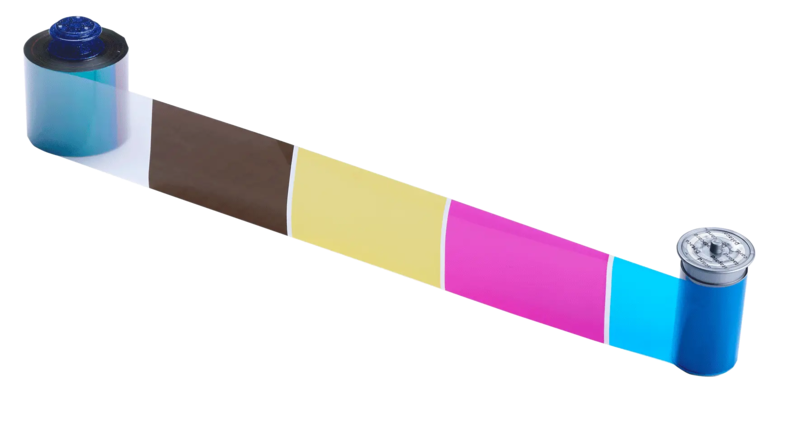

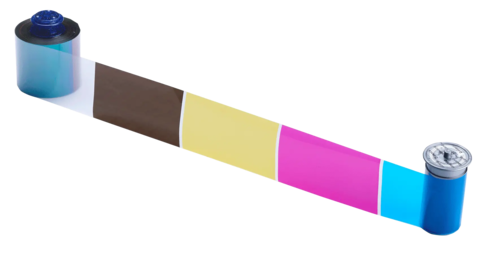

- One CMYKP-KPi Color Ribbon.
- This product is a solid, multicolored plastic film that acts as an article under normal conditions of use. It consists of polyethylene terephthalate (PET) film with thin layers of specialized pigment coatings. Using a thermal print head, the pigment coatings are transferred to the retransfer film prior to the film being applied to a card.
- One adhesive cleaning sleeve.
- Sleeve with adhesive cleaning wrap and removable protective cover applied to outside of plastic cylinder.
- One isopropanol cleaning card.
- PVC card with outer layers of absorbent cleaning material saturated with isopropanol.
Printer Usage: Datacard certifies that this ribbon is optimized for use in the following Datacard® printers:
- Datacard® CR805 and CR805 CLM
- CR Series card printers feature Datacard® proprietary ribbons, which are designed specifically for the CR Series card printer. When the printer recognizes that a Datacard® ribbon is installed, all enhanced product features are enabled and successful card printing can begin. The printer will only print color images when Datacard® proprietary color ribbons are installed. Datacard is your exclusive source for proprietary ribbons for the CR Series card printers.
Packaging: Ribbon kits are enclosed in a Datacard® Certified Supplies, resealable, clamshell that include loading and usage instructions. Sixteen unit clamshells are included in one case of product.
Recommended storage:
- Temperature: 50 - 80ºF (10 - 27ºC)
- Humidity: 30 – 70% RH (non-condensing)
- Sunlight: Do not store any supplies in direct sunlight or near a heat source
Specifications
Ribbon Specifications
- Panel Designations: C = Cyan Pigment, M = Magenta Pigment, Y = Yellow Pigment , K = Black Pigment, P = Primer, i = Inhibitor
- Nominal Dimensions (roll):
- Height: 2.44 inches (62mm)
- Outside Diameter (rolled): Less than 2.69 inches (68.3mm)
- Length (unrolled): 1435.4 Feet (437.5 m)
- Nominal Dimensions (box):
- Unit: Length 6.3 inches (160 mm) x Width 4.3 inches (109 mm) x Height 3.3 inches (84 mm)
- Case: Length 17.3 inches (440 mm) x Width12.3 inches (313 mm) x Height 6.8 inches (171 mm)
- Yield: 500 duplex printed cards per roll
- Core Color: Datacard® distinctive blue core with platinum flecks® made with EcoPure® biodegradable additive.
- Packaging: Each individual ribbon is packaged in a sealed clamshell.
Adhesive Cleaning Sleeve Specifications:
- Nominal Dimensions: 2.5 inches (6.35 cm) x 1.5 inches (3.81 cm) outside diameter
- Usage: Datacard recommends performing a cleaning cycle whenever a ribbon is replaced or as required by the end-user.
- Core Color: Datacard blue core
- Packaging: A removable, protective plastic layer that includes loading and usage instructions protects each individual cleaning sleeve.
Isopropanol Cleaning Card Specifications:
- Nominal Dimensions: 3.375 inches (8.6 cm) x 2.125 inches (5.4 cm)
- Usage: Datacard recommends performing a cleaning cycle whenever a ribbon is replaced or as required by the end-user.
- Color: White
- Packaging: Each individual cleaning card is enclosed in a disposable, protective envelope. Each envelope
- has loading and usage instructions printed on the outside cover.
