Description

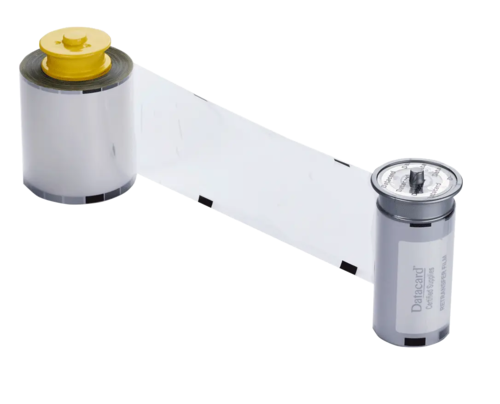

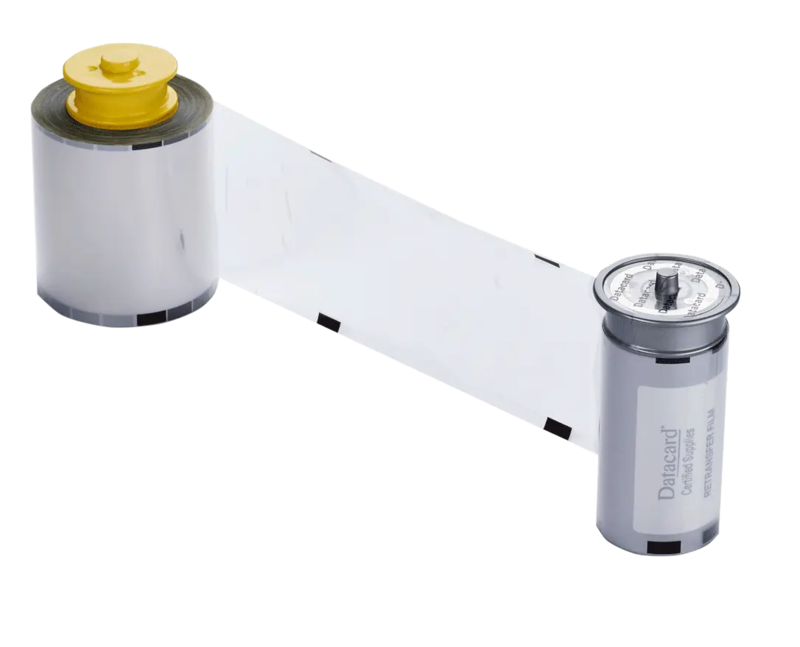

This product consists of a polyethylene terephthalate (PET) film with thin layers of specialized coatings. This film is compatible for use in the Datacard® CR805 and CR805 CLM. The printer prints colored images onto the retransfer film (RTM). The colored image and the RTM coatings are then transferred to plastic cards using a heated roller.
Printer Usage: Datacard certifies that this film is optimized for use in the following Datacard® printers:
- Datacard® CR805 and CR805 CLM
- CR Series card printers feature Datacard® proprietary ribbons, which are designed specifically for the CR Series card printer. When the printer recognizes that a Datacard® ribbon is installed, all enhanced product features are enabled and successful card printing can begin. The printer will only print color images when Datacard® proprietary color ribbons are installed. Datacard is your exclusive source for proprietary ribbons for the CR Series card printers.
Recommended storage:
- Temperature: 50 - 80ºF (10 - 27ºC)
- Humidity: 30 – 70% RH (non-condensing)
- Sunlight: Do not store any supplies in direct sunlight or near a heat source
Specifications
Ribbon Specifications:
- Nominal Dimensions (roll):
- Height: 2.68 inches (68mm)
- Outside Diameter (rolled): Less than 2.46 inches (62.6mm) for 1000 prints / 2.86 inches (72.7mm) for 1500 prints
- Length (unrolled): 327.1 Feet (99.7 m) for 1000 prints / 490.5 Feet (149.5 m) for 1500 prints
- Nominal Dimensions (box):
- Unit: Length 6.4 inches (163 mm) x Width 3.8 inches (97 mm) x Height 3.5 inches (89 mm)
- Case: Length 15.3 inches (389 mm) x Width 12.3 inches (313 mm) x Height 7.1 inches (181 mm)
- Yield: 1000 or 1500 images per roll (optional)
- Packaging: Each individual retransfer film kit is packaged in a sealed clamshell.
